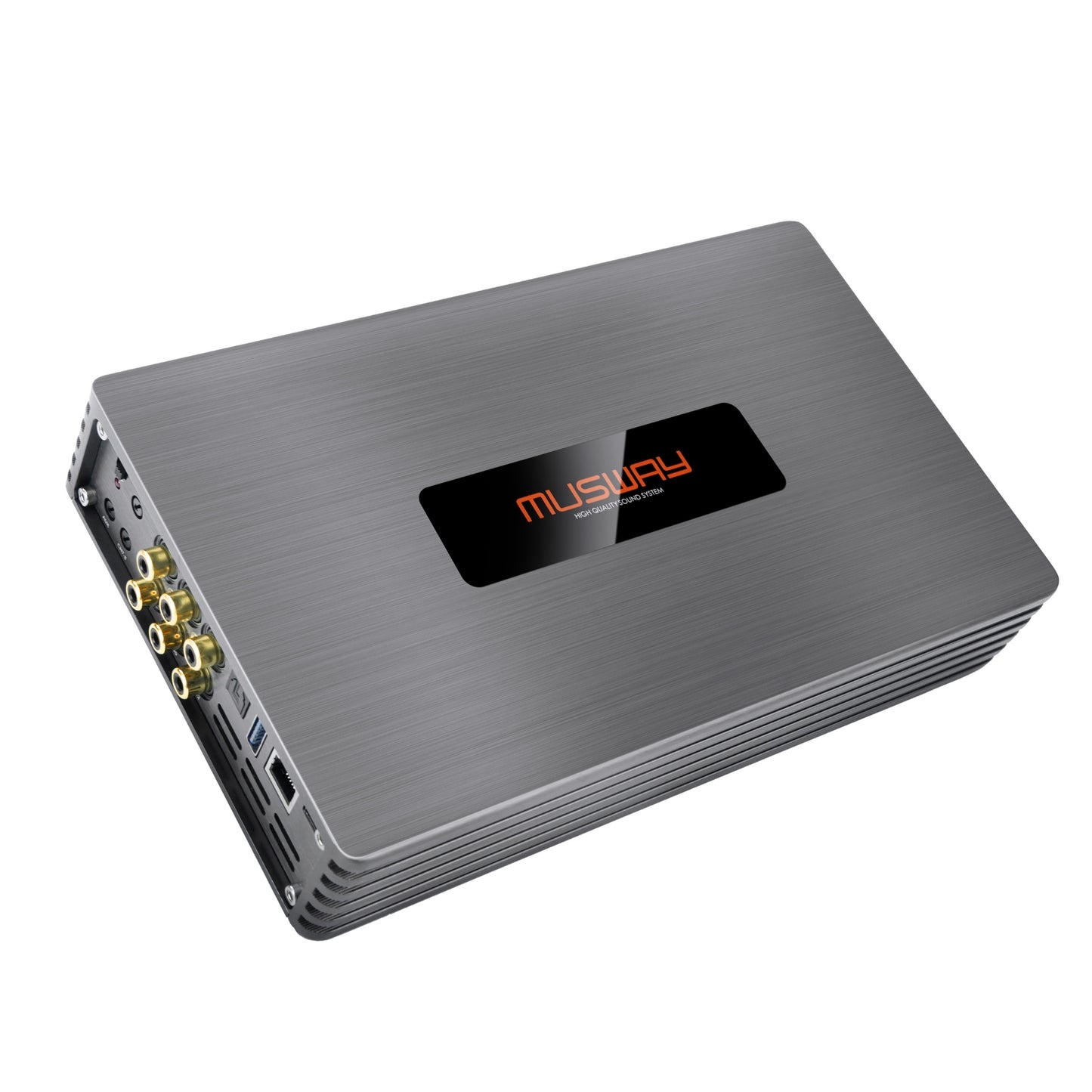

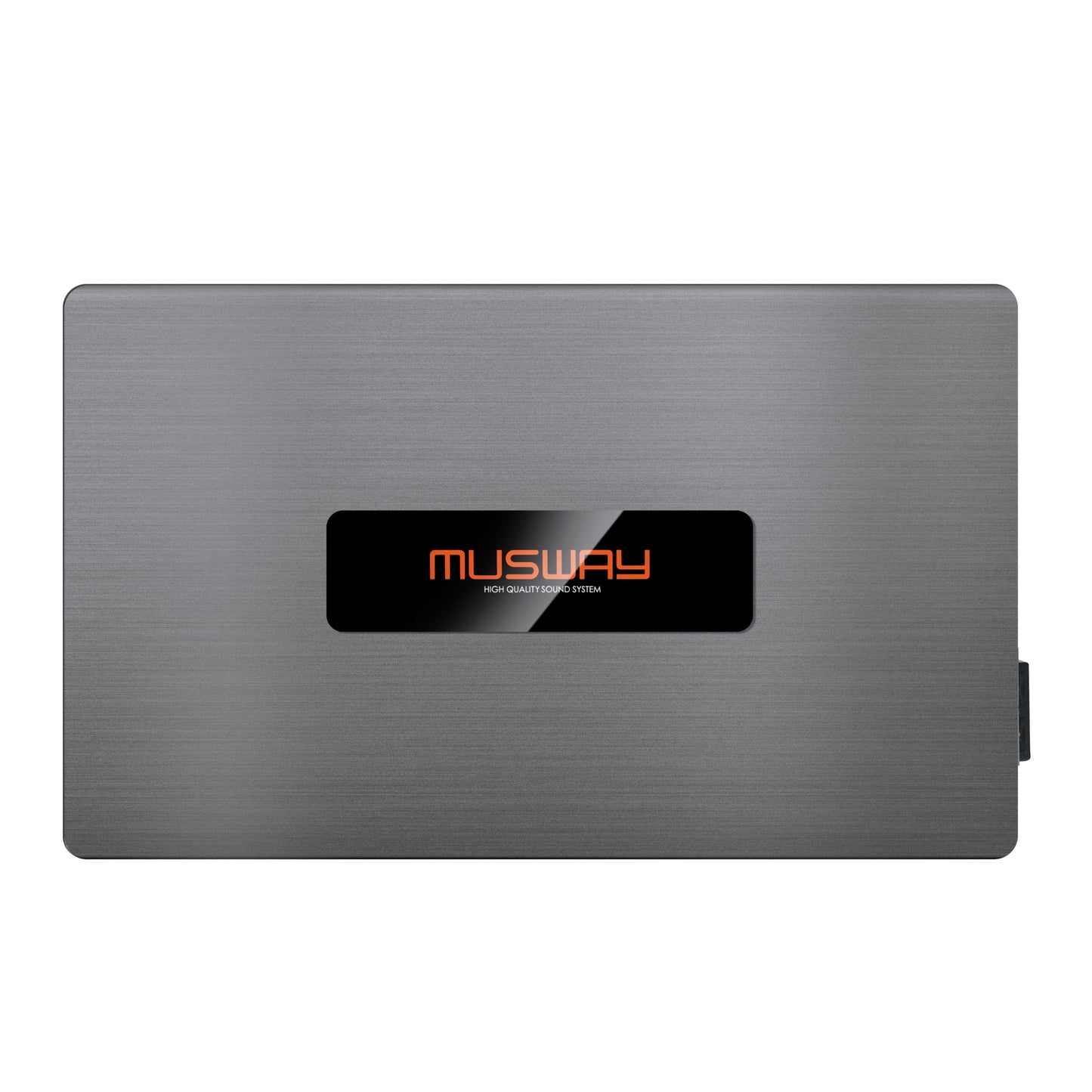

MUSWAY 8 Channel Class D Amplifier With 12 Channel DSP - (M8)

The Musway M8 is a compact 8-channel Class D amplifier with a 12-channel DSP, engineered to deliver precise tuning and powerful performance. With staggered outputs of 80–135 W across six channels and two high-power channels reaching 220 W each, the M8 offers versatile configurations for speakers and subwoofers alike.

Product Overview

The Musway M8 is designed for enthusiasts who want both flexibility and power in their car audio system. Featuring an 8-channel Class D design paired with a 12-channel DSP, the M8 allows precise control over sound staging, time alignment, and equalization. Channels 1–6 provide 80 W RMS at 4 Ω or 135 W RMS at 2 Ω, with the ability to bridge up to 270 W per pair. Channels 7–8 deliver extra headroom with 120 W RMS at 4 Ω or 220 W RMS at 2 Ω, making them ideal for subwoofers or demanding components, with up to 440 W available in bridged mode. Integration is seamless thanks to multiple input options—including high-level, RCA, AUX, and optical PCM 192 kHz/24-bit—while the four RCA pre-outs allow expanded system design. Housed in a sleek aluminum chassis measuring just 245 × 44 × 150 mm, the Musway M8 combines compact dimensions with premium audio performance, making it a powerhouse for modern car audio upgrades.

Product Power

• 120W RMS @ 4 Ohms

• 220W RMS @ 2 Ohms

• 440W RMS @ 4 Ohms Bridged (per channel pair)

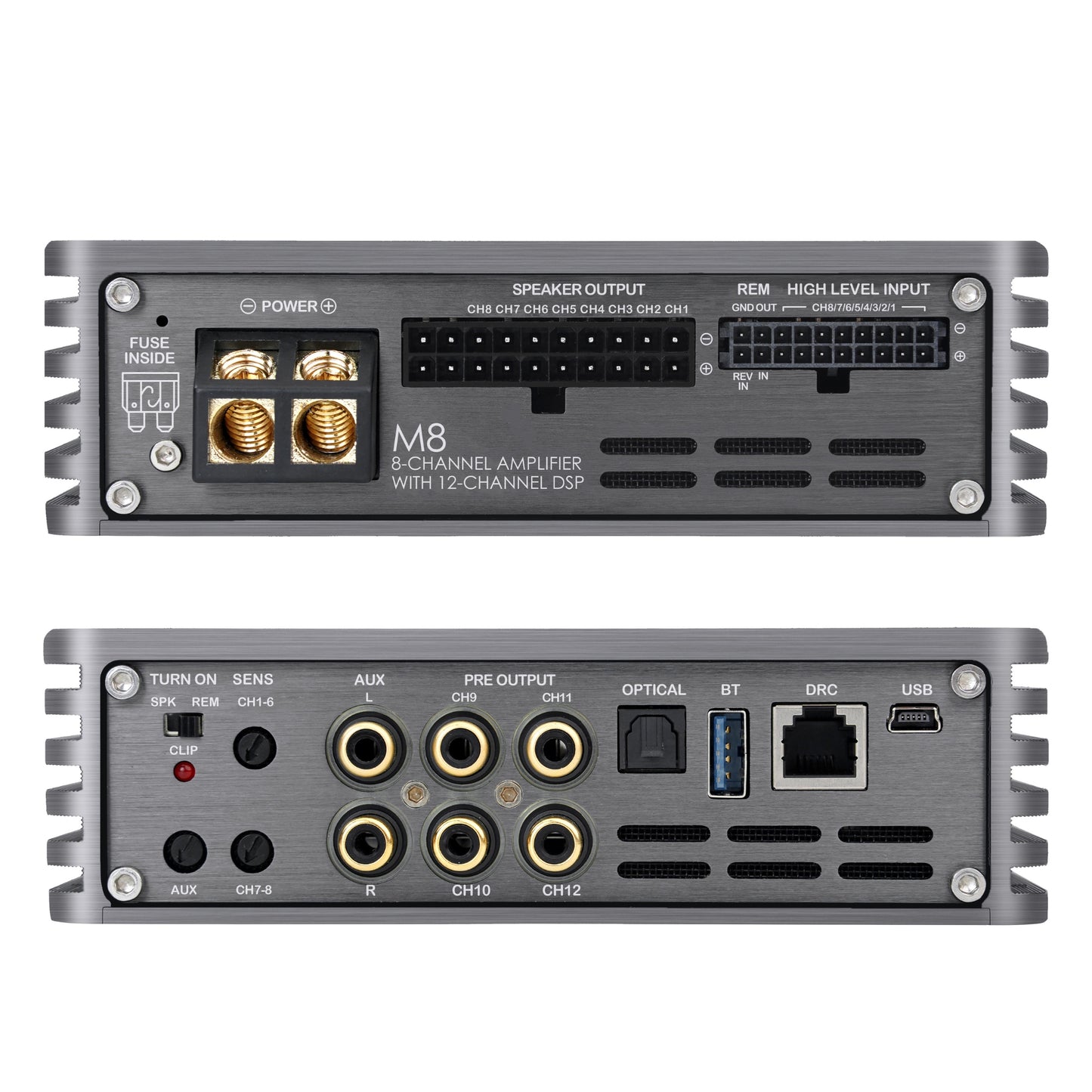

Inputs:

• 6 × High Level Inputs (3–21 V/RMS with EPS)

• 2 × High Level Inputs (4–32 V/RMS with EPS)

• 6 × RCA Low Level Inputs (0.7–5 V/RMS)

• 2 × AUX/RCA Inputs (0.8–6 V/RMS)

• 1 × Optical Input (Stereo PCM 192 kHz / 24-bit)

Outputs:

• 8 × Loudspeaker Outputs (amplified)

• 4 × Pre-Amplifier Outputs / RCA (configurable via DSP)

• DSP: 12-channel configurable digital sound processor

• Dimensions (Heatsink): 245 × 44 × 150 mm

Product Specification

• Amplifier Type: 8-Channel Class D with 12-Channel DSP

• Power Output (CH 1–6):

• 80W RMS @ 4 Ohms

• 135W RMS @ 2 Ohms

• 270W RMS @ 4 Ohms Bridged (per channel pair)

• Power Output (CH 7/8):

• 120W RMS @ 4 Ohms

• 220W RMS @ 2 Ohms

• 440W RMS @ 4 Ohms Bridged (per channel pair)
