Mille PRO subwoofer have a depth/performance ratio never achieved before thanks to the impressive cone excursion capacity which is 20% higher than a traditional design.

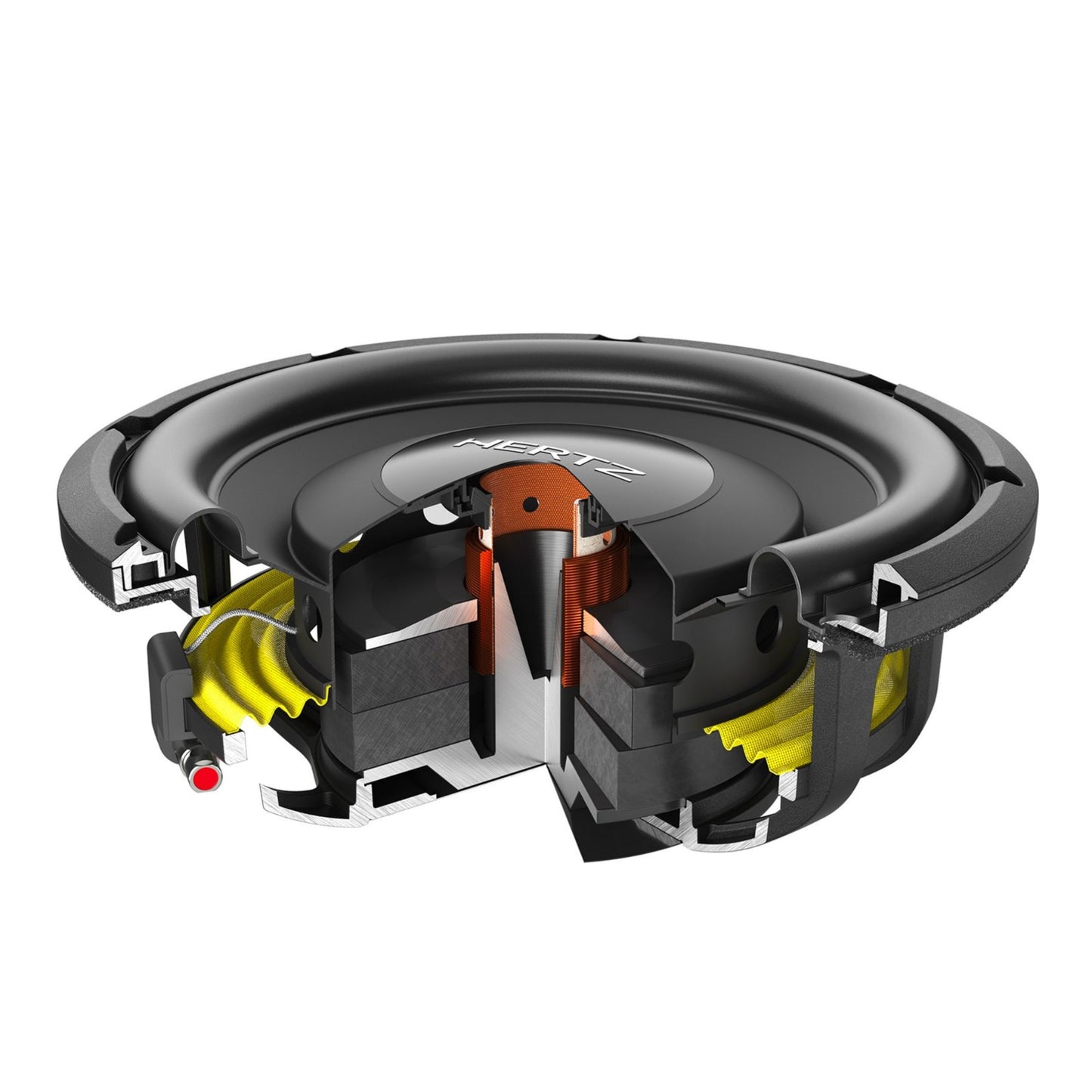

This exceptional target has been achieved thanks to the ingenious suspension group design featuring a dedicated support structure for spider and coil. This solution has allowed to move the magnetic group inwards, reducing the depth and at the same time maximizing cone linear excursion.
Technical Specs
| Size mm (in.) | 250 (10) |
| Power Handling - Continuous W | 500 |
| Power Handling - Peak W | 1000 |
| Impedance Ohm | 4 |
| Depth mm (in.) | 82,6 (3.25) |
| Voice Coil Type | single |
| No Filter Component | Subwoofers |
| Voice Coil Ø | 38 (1.5) |
| Frequency Response Hz | 25 - 400 |
| Magnet size D x d x h mm (in.) | 134 x 55 x 36 (6.28 x 2.17 x 1.42) |
| Weight of one component kg (lb.) | 5,11 (11.27) |
| Magnet | High density flux ferrite |
| Cone | Polypropylene |
| Xmech mm (in.) | 20 (0.79) |
Electro-acoustic Specs
| D mm | 216,6 |
| Xmax mm | 16,8 |
| Re Ohm | 3,3 |
| Fs Hz | 29 |
| Le mH | 3,65 |
| Vas I | 21,2 |
| Mms g | 234 |
| Cms mm/N | 0,11 |
| BL T*m | 17,3 |
| Qts | 0,48 |
| Qes | 0,52 |
| Qms | 5,6 |
| Spl dB | 83,5 |
