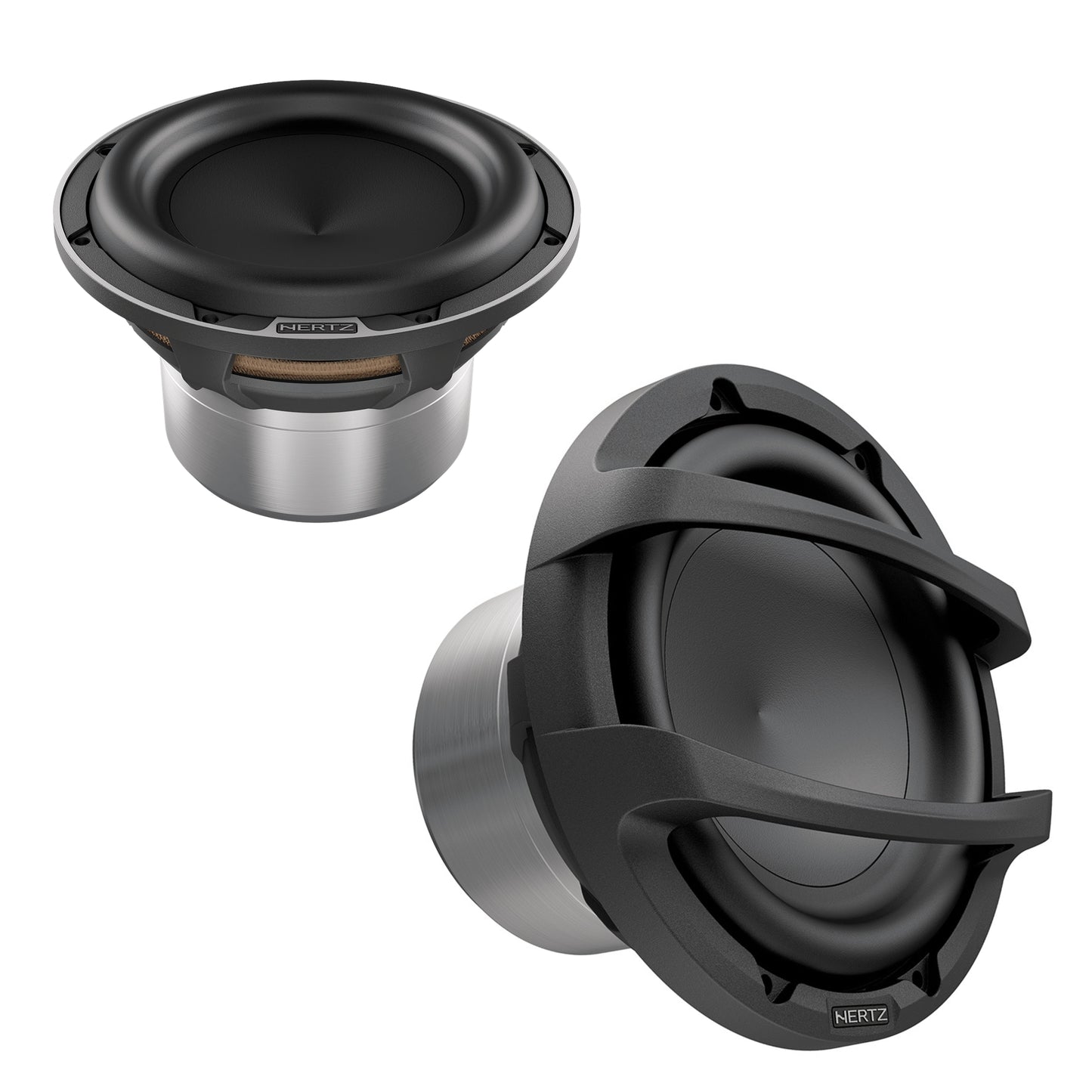

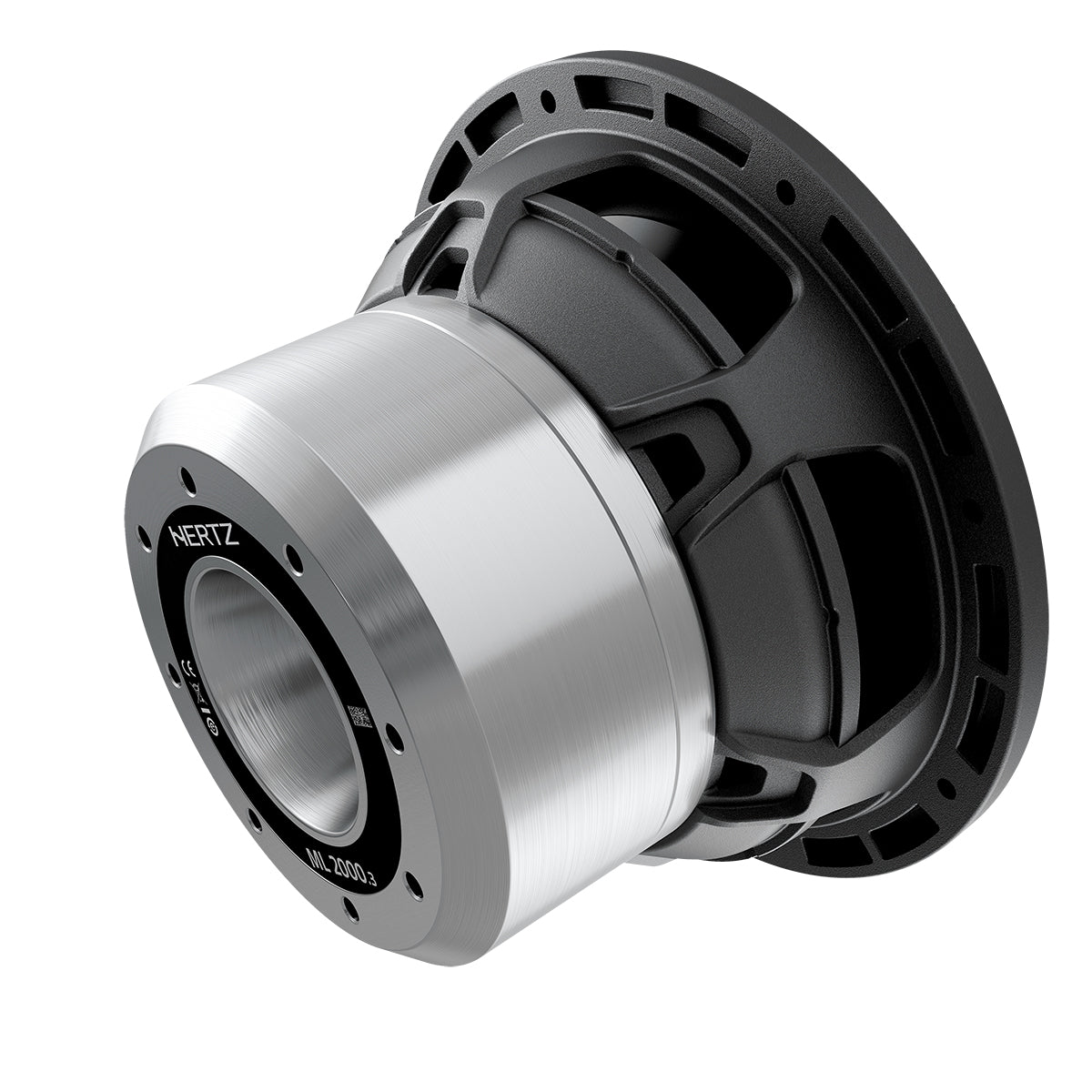

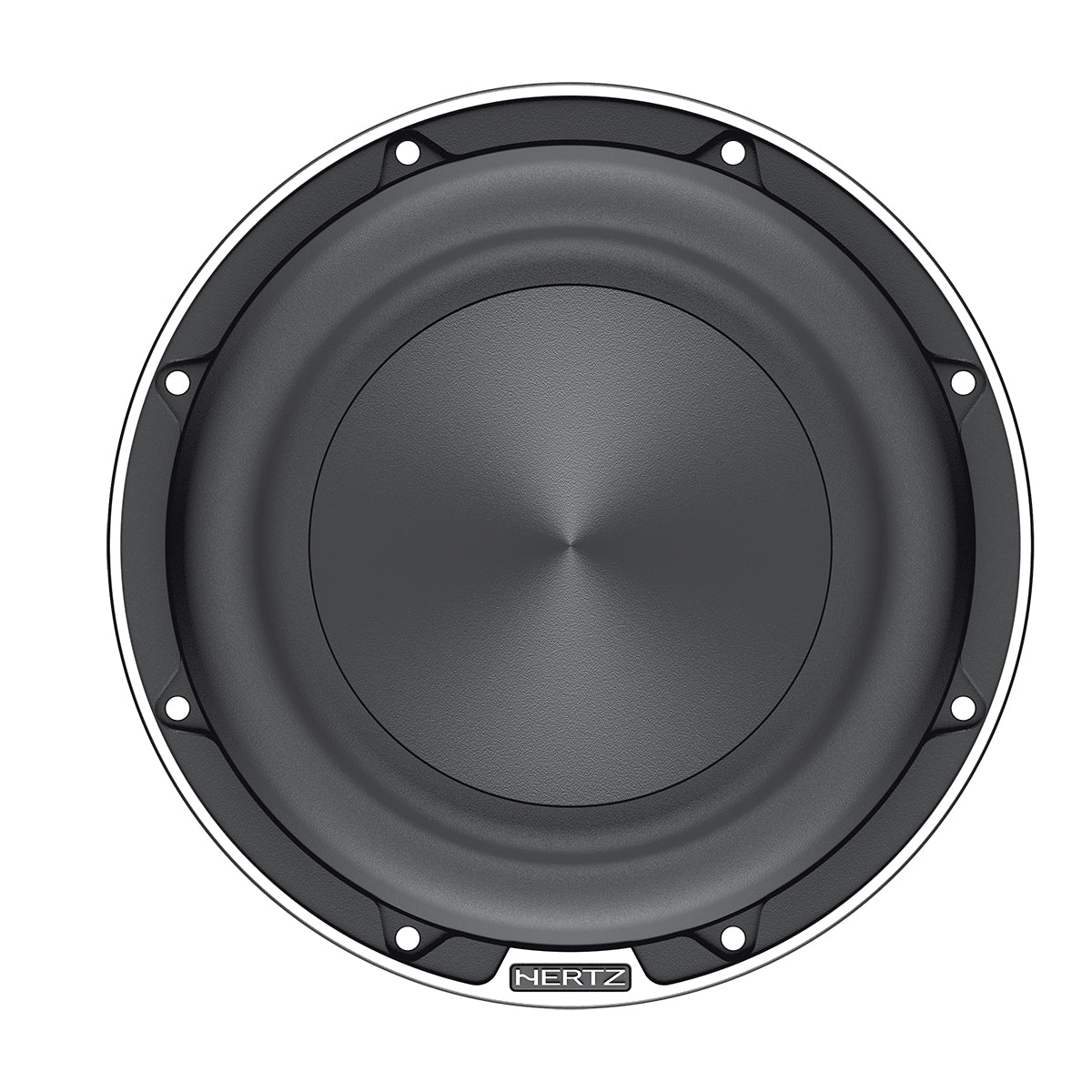

Music fans who attend live concerts know well the emotions that low undistorted frequencies without dynamic compression can arouse. For this reason, the HertzAudioVideo R&D created ML 2000.3 Legend car audio subwoofer. During the long development phase of this car audio speakers, the designers set themselves just one ambitious goal: to transfer the emotions of a live performance to the car environment. Thanks to a completely renewed design, ML2000.3 car audio subwoofers have extremely compact size and are optimized to play in enclosures with reduced boxes. This choice of design combines two requirements hard to achieve up to now: reference performance and ease of installation.
Technical Specs
| Size mm (in.) | 200 (8) |
| Power Handling - Continuous W | 700 |
| Power Handling - Peak W | 1400 |
| Impedance Ohm | 4 |
| Voice Coil Type | single |
| No Filter Component | Subwoofers |
| Voice Coil Ø | 100 (4) |
| Frequency Response Hz | 30 ÷ 600 |
| Magnet size D x d x h mm (in.) | 95 x 28 x 5 (3.7 x 1.1 x 0.2) |
| Weight of one component kg (lb.) | 6,120 (13.5) |
| Magnet | Neodymium |
| Cone | Pressed-pulp cone with mineral powders |
| Xmech mm (in.) | ±23 (0.9) |
Electro-acoustic Specs
| D mm | 165 |
| Xmax mm | 13 |
| Re Ohm | 2,7 |
| Fs Hz | 40 |
| Le mH | 0,72 |
| Vas I | 9,5 |
| Mms g | 110 |
| Cms mm/N | 0,15 |
| BL T*m | 11 |
| Qts | 0,56 |
| Qes | 0,63 |
| Qms | 5 |
| Spl dB | 86 |
