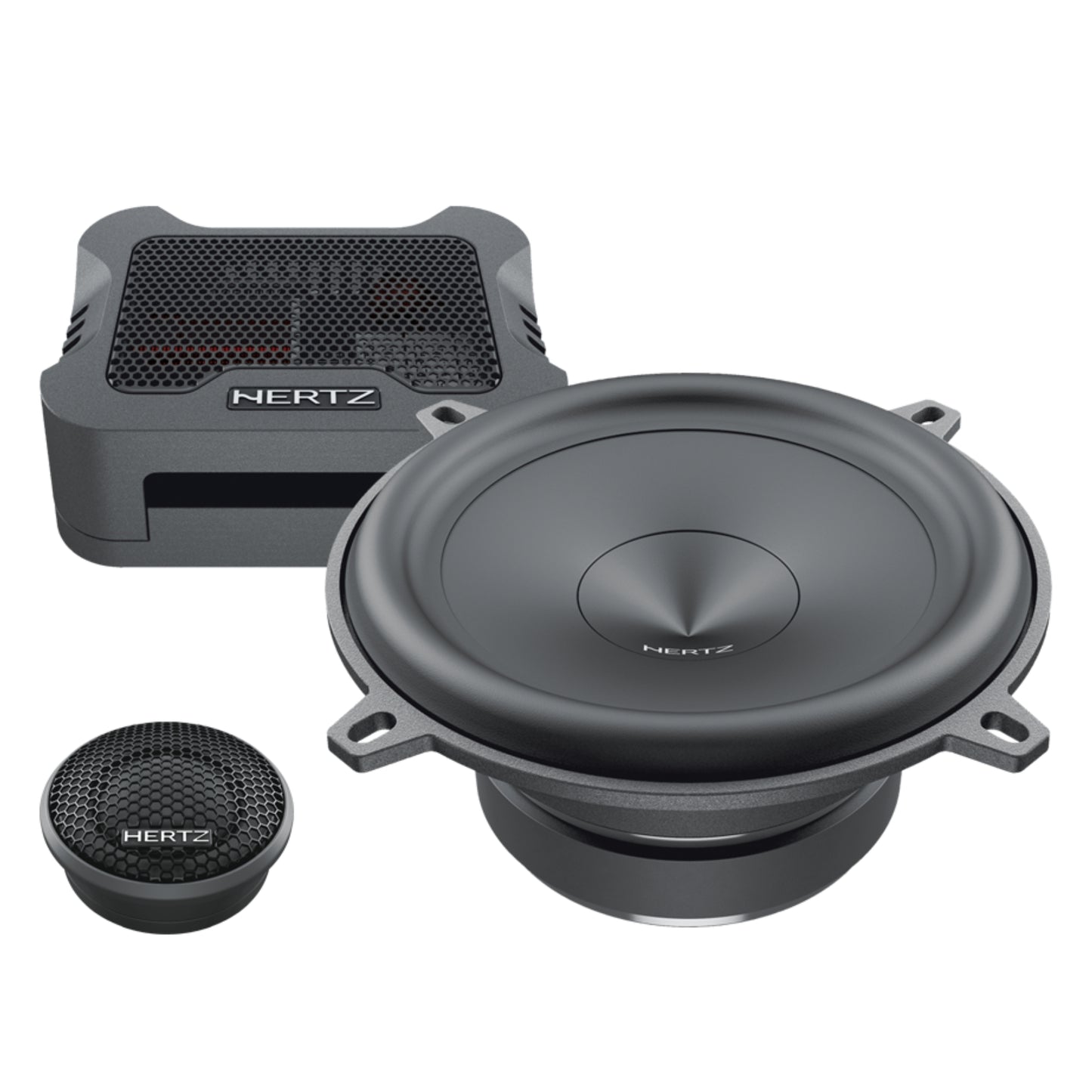

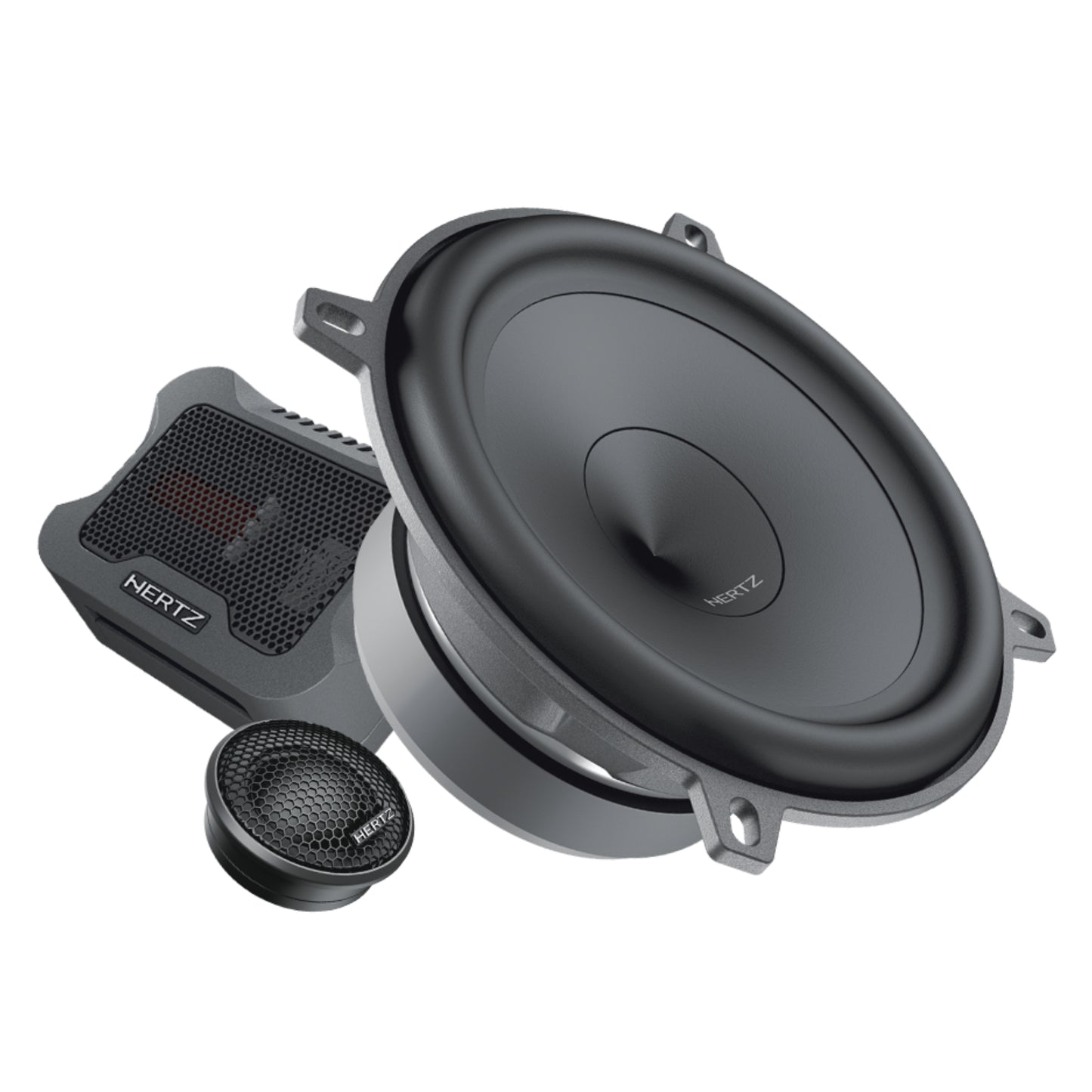

The MPK 130.3 car audio speakers system has been designed to ensure a wide low frequency response, even in cars with no space for a subwoofer. Thanks to the V-cone® and Boundary Free Surround technologies the MP 130.3 woofer boast outstanding dispersion features and generates high SPL with compact dimensions. The dedicated crossover MPCX 2.3 has been designed to exploit the wide extension of the MP 130.3 woofers , ensuring a natural transition towards the MP 25.3 tweeter, for maximum natural acoustic emission. The 1mm low parasitic resistance copper filter coil of the woofer maximizes its efficiency. The MPCX 2.3 crossover features tweeter level (0/+2 dB) to calibrate the MP 25.3 acoustic emission level comparing it to the woofer one..
Technical Specs
| Component | System |
| Size mm (in.) | 130 (5) |
| Power Handling - Continuous W | 100 |
| Power Handling - Peak W | 200 |
| Impedance Ohm | 4 |
| Tweeter diaphragm mm (in.) | 29 (1.14) |
| Woofer Voice Coil Ø mm (in.) | 25 (1) |
| Tweeter Voice Coil Ø mm (in.) | 25 (1) |
| Sensitivity dB SPL | 91 |
| Frequency Response Hz | 60 ÷ 22,5k |
| Crossover Cut off | 3,5 kHz |
| Crossover Type | 2 Way Passive Crossover |
| Weight of one component - Woofer | 0.95 (2.09) |
| Weight of one component - Tweeter kg (lb) | 0.07 (0.15) |
| Weight of one component - Crossover kg (lb) | 0.16 (0.35) |
Electro-acoustic Specs
| D mm | 110 |
| Re Ohm | 3,1 |
| Fs Hz | 90 |
| Le mH | 0,25 |
| Vas I | 3 |
| Mms g | 10,5 |
| Cms mm/N | 0,24 |
| BL T*m | 5,3 |
| Qts | 0,64 |
| Qes | 0,74 |
| Qms | 5,1 |
| Spl dB | 92 |
