The 3-way (2+1) speaker system combines two 165 mm woofers, two 80 mm midrange drivers and two 25 mm magnesium tweeters, delivering clear, precise sound reproduction. The components are designed with rigid carbon-fiber diaphragms and neodymium magnets for optimum performance. External high-pass filters enable fine tuning of frequencies, guaranteeing superior audio quality, ideal for audiophiles.
3 (2+1) WAY COMPONENT SPEAKER SYSTEM
Technical specification

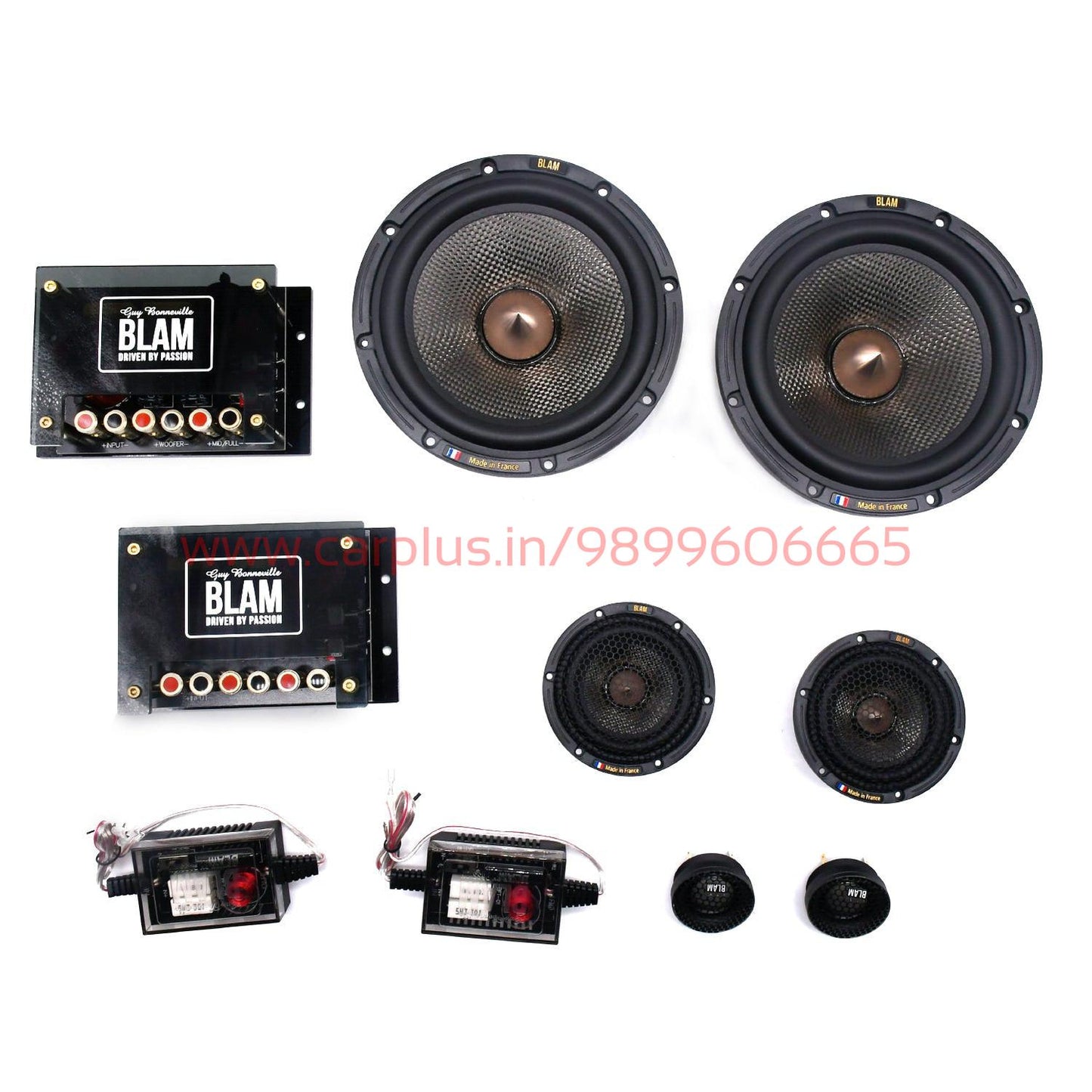

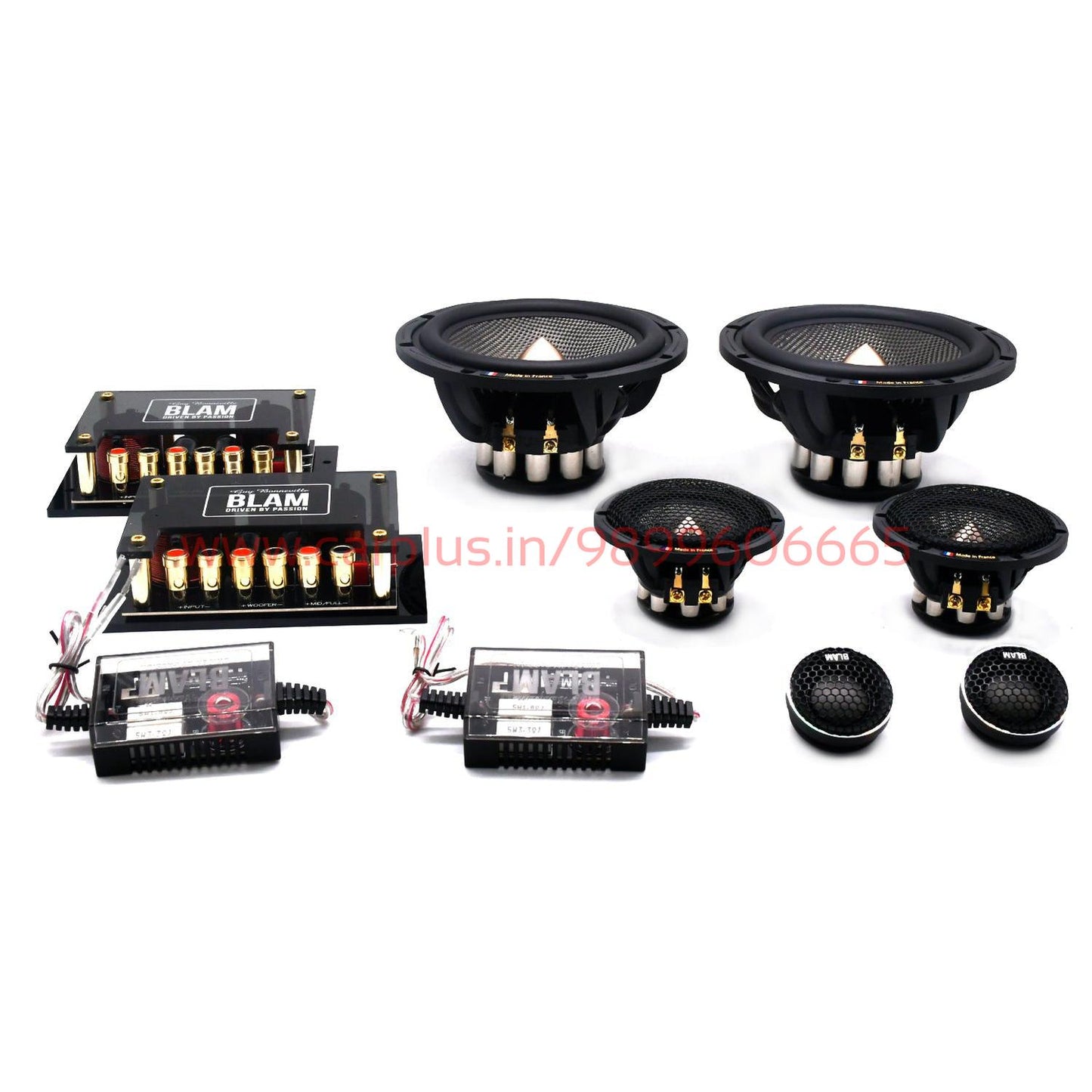

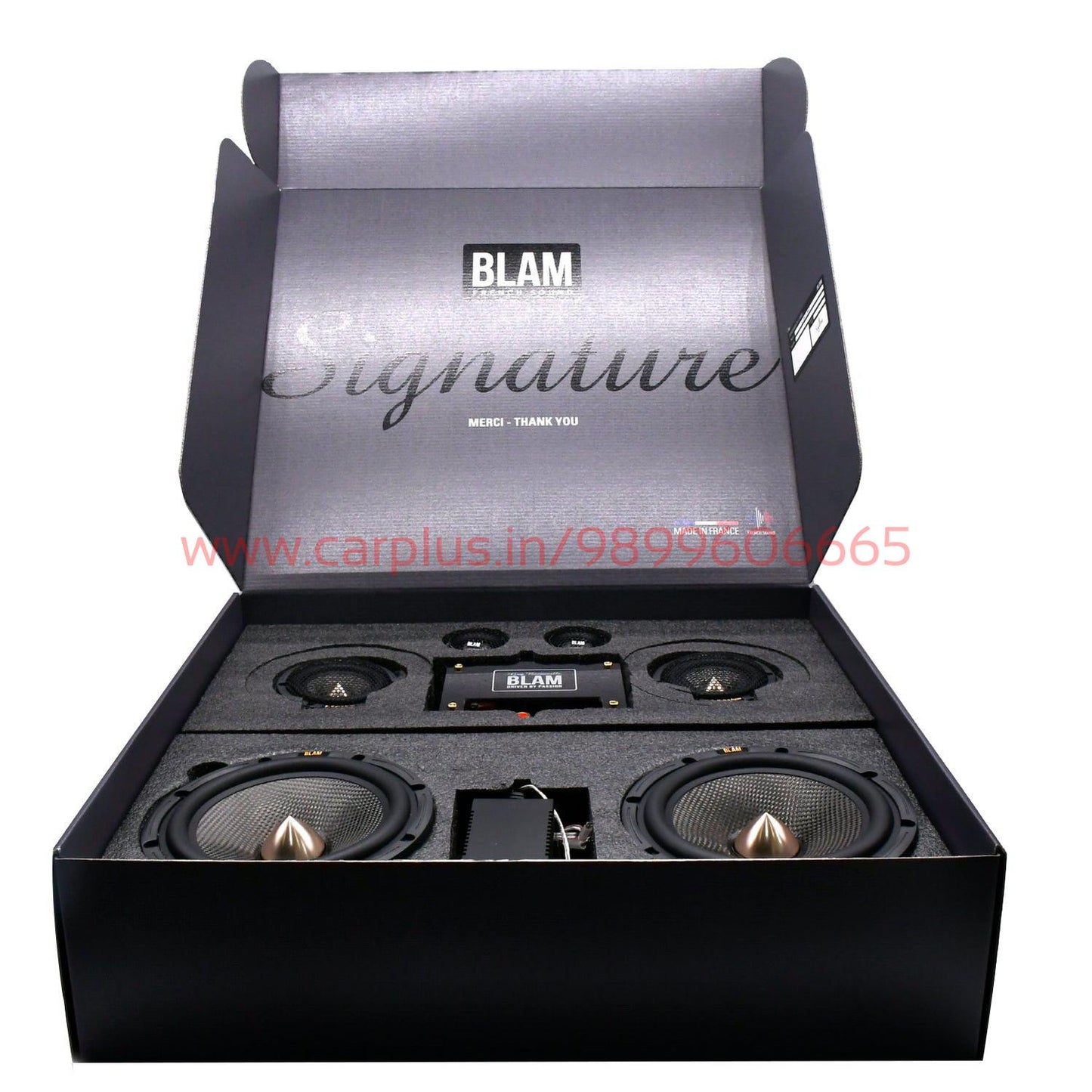

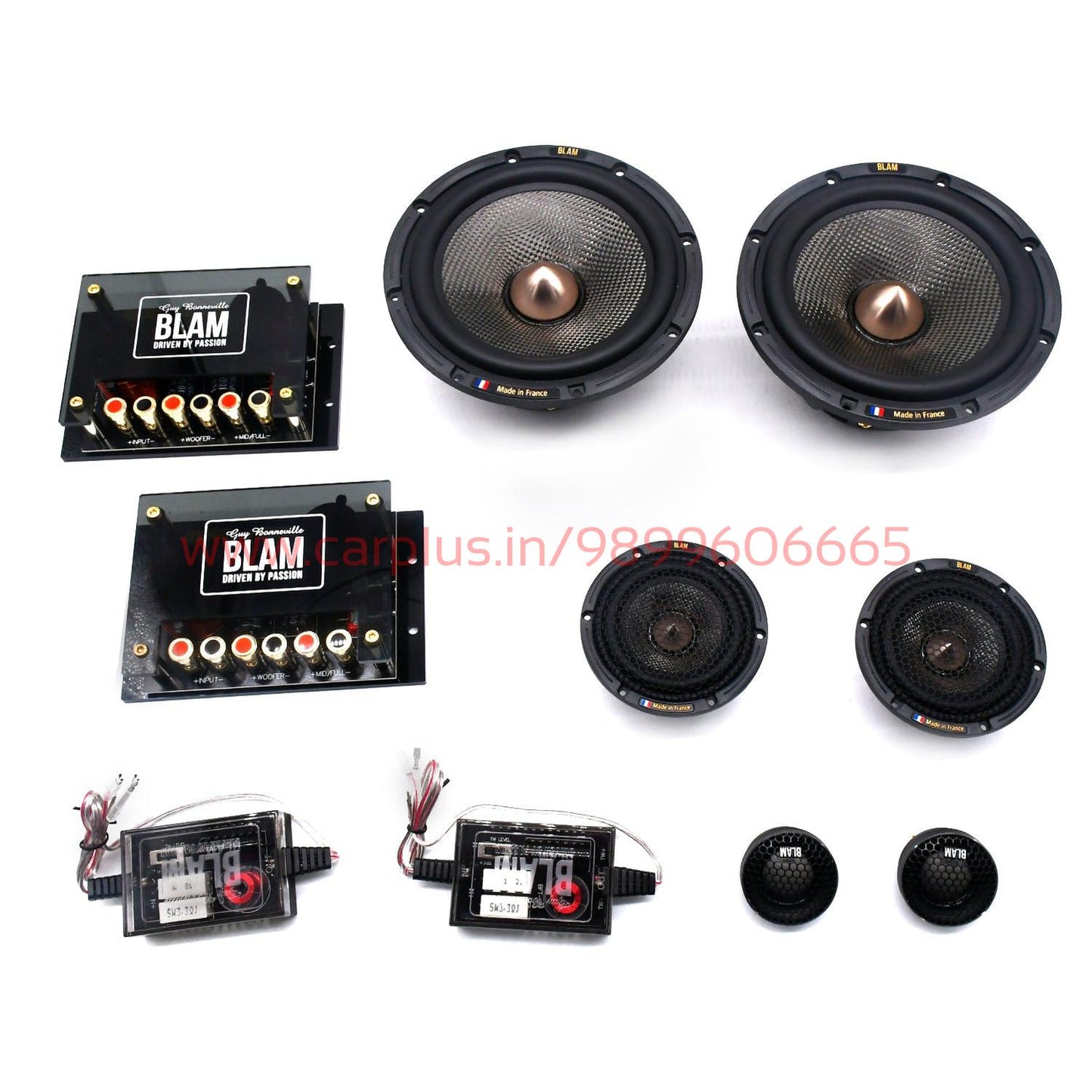

The kit includes two 165 mm (6.5″) woofers, two 80 mm (3″) midrange drivers, two 25 mm pure magnesium dome tweeters and four external 6/12 dB/octave high-pass crossovers.
Composition

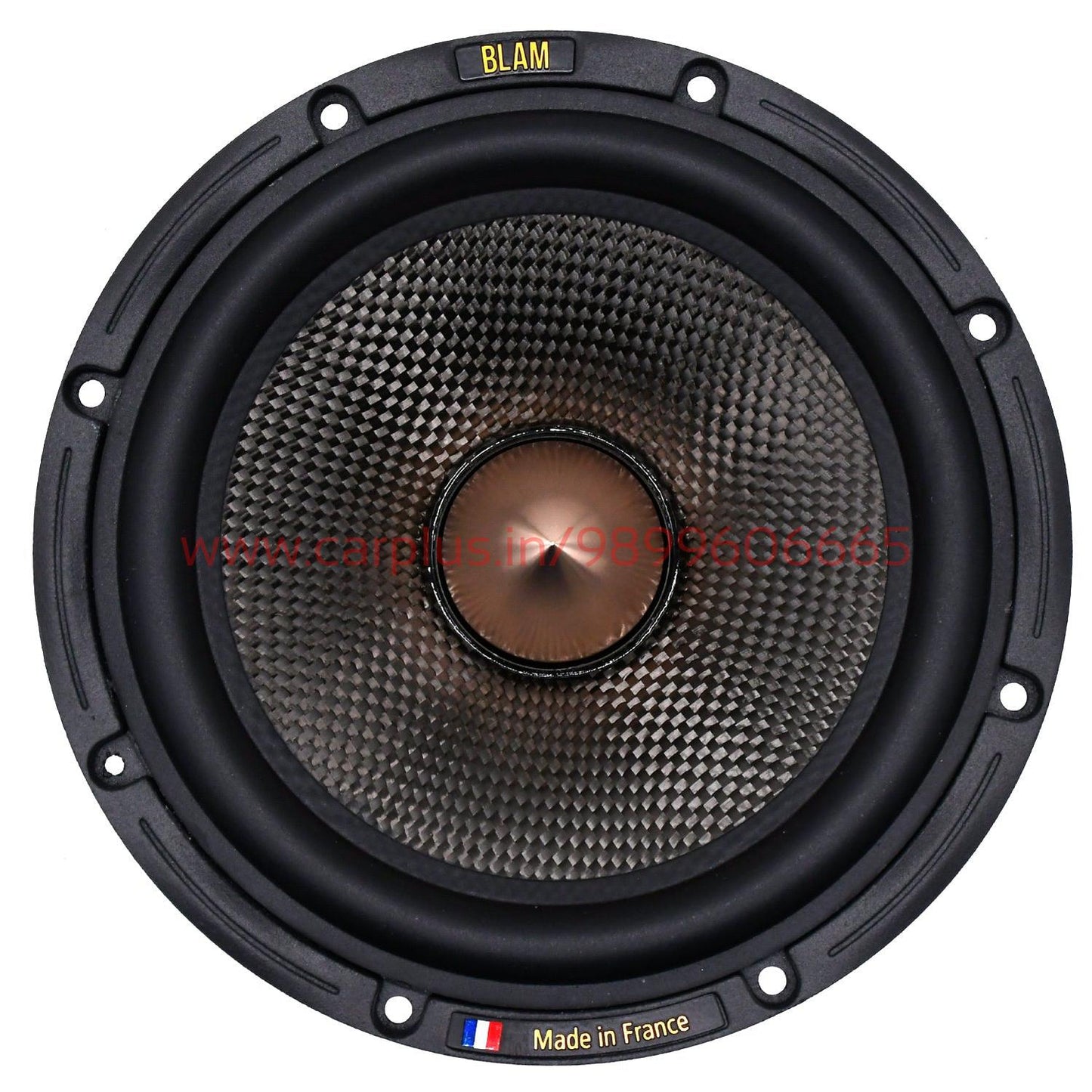

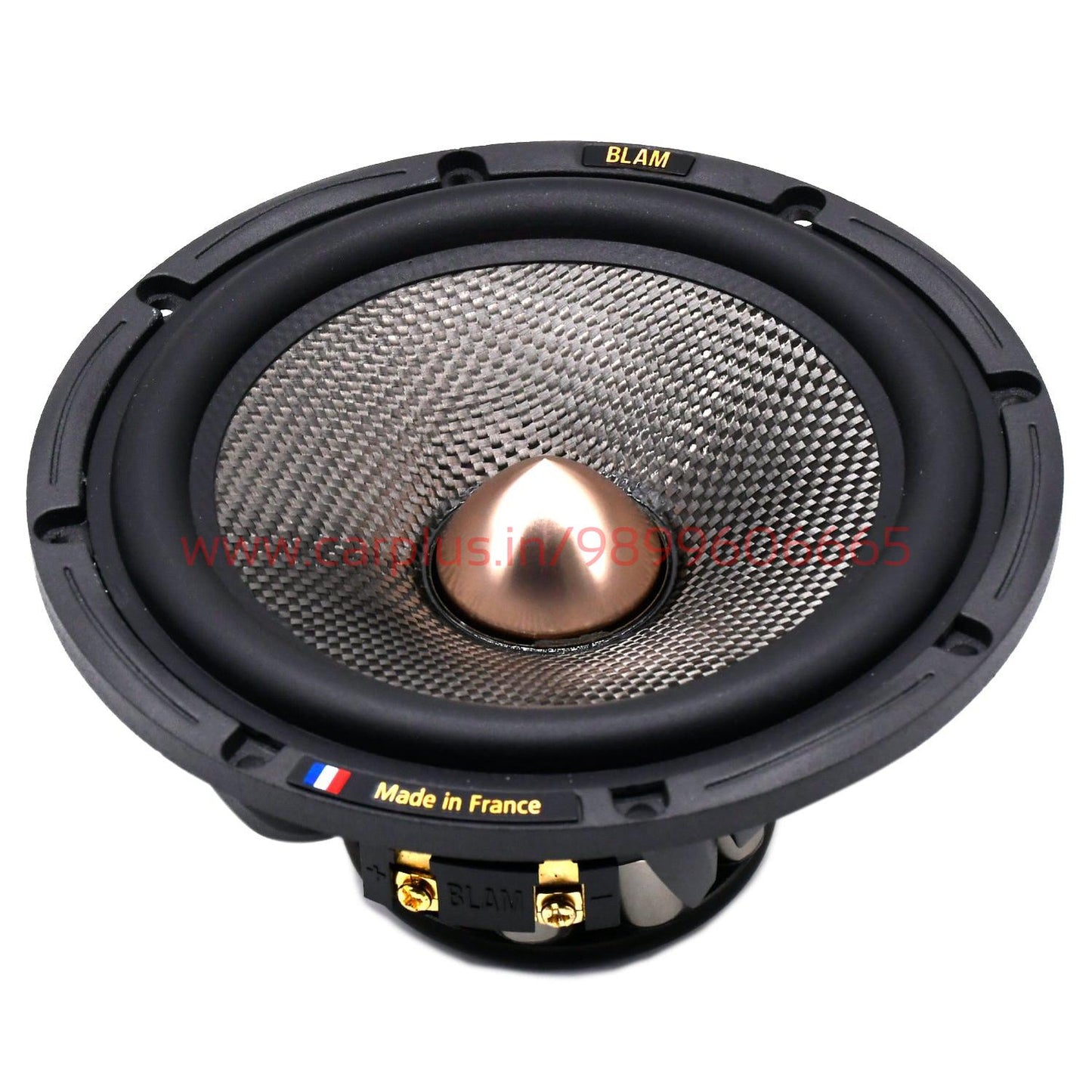

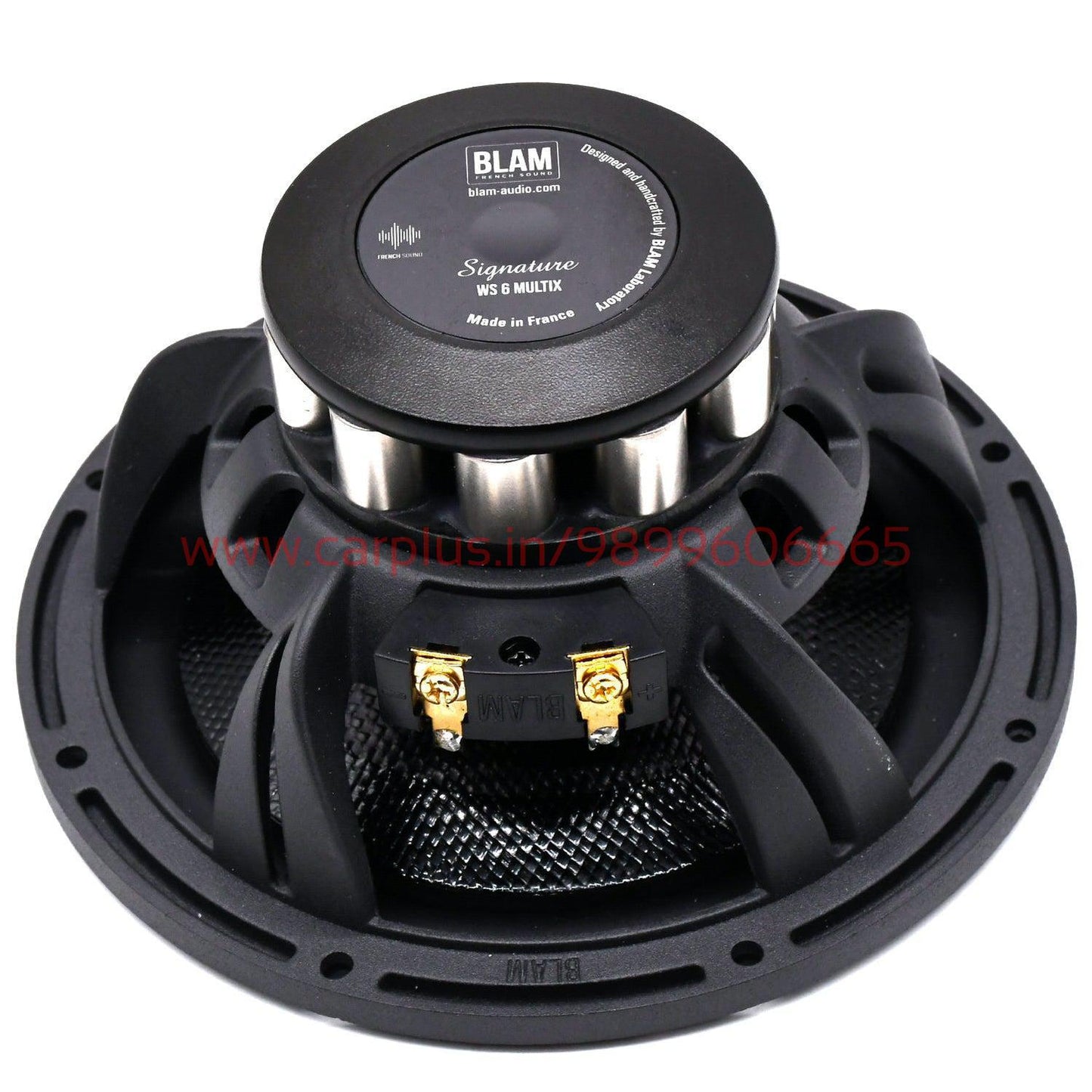

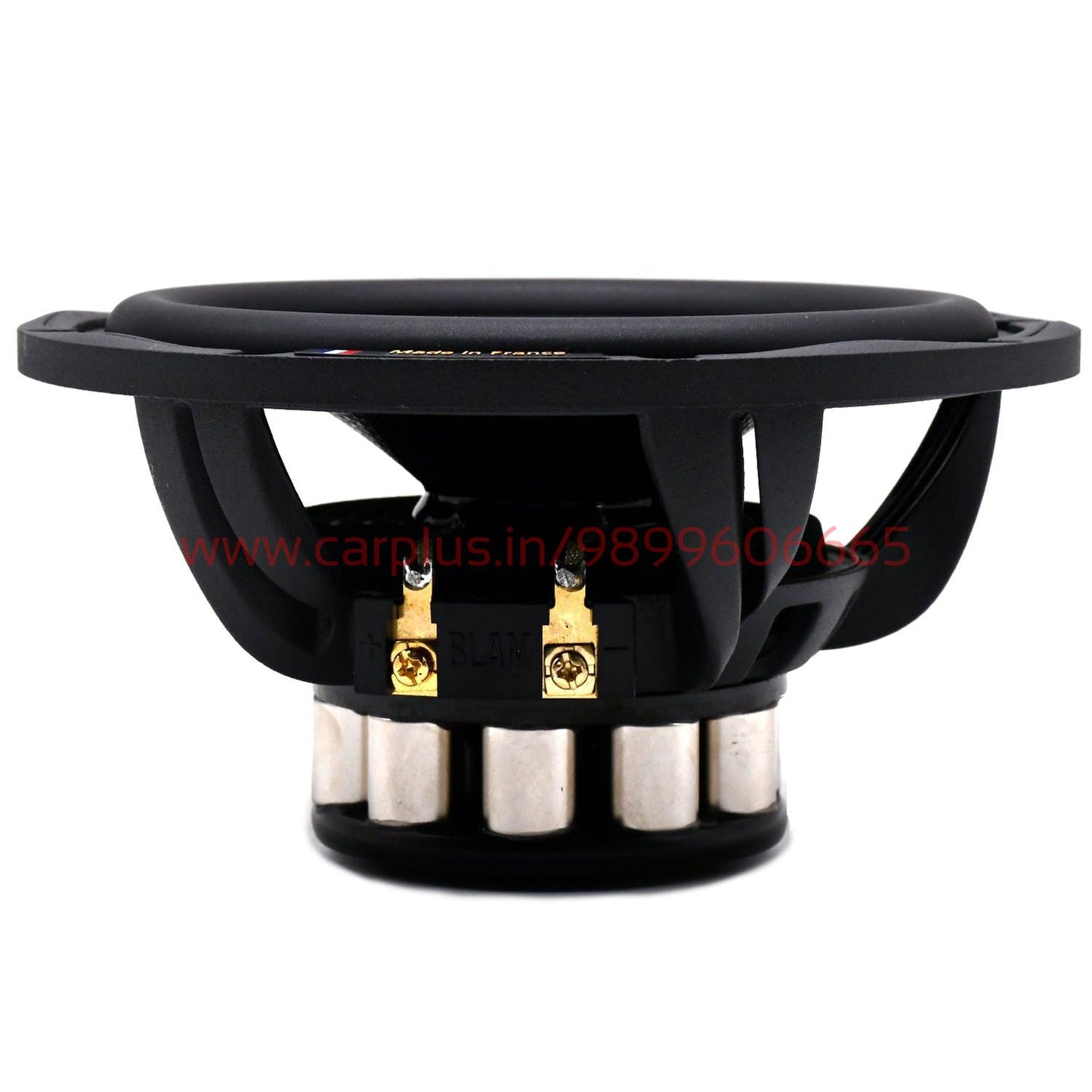

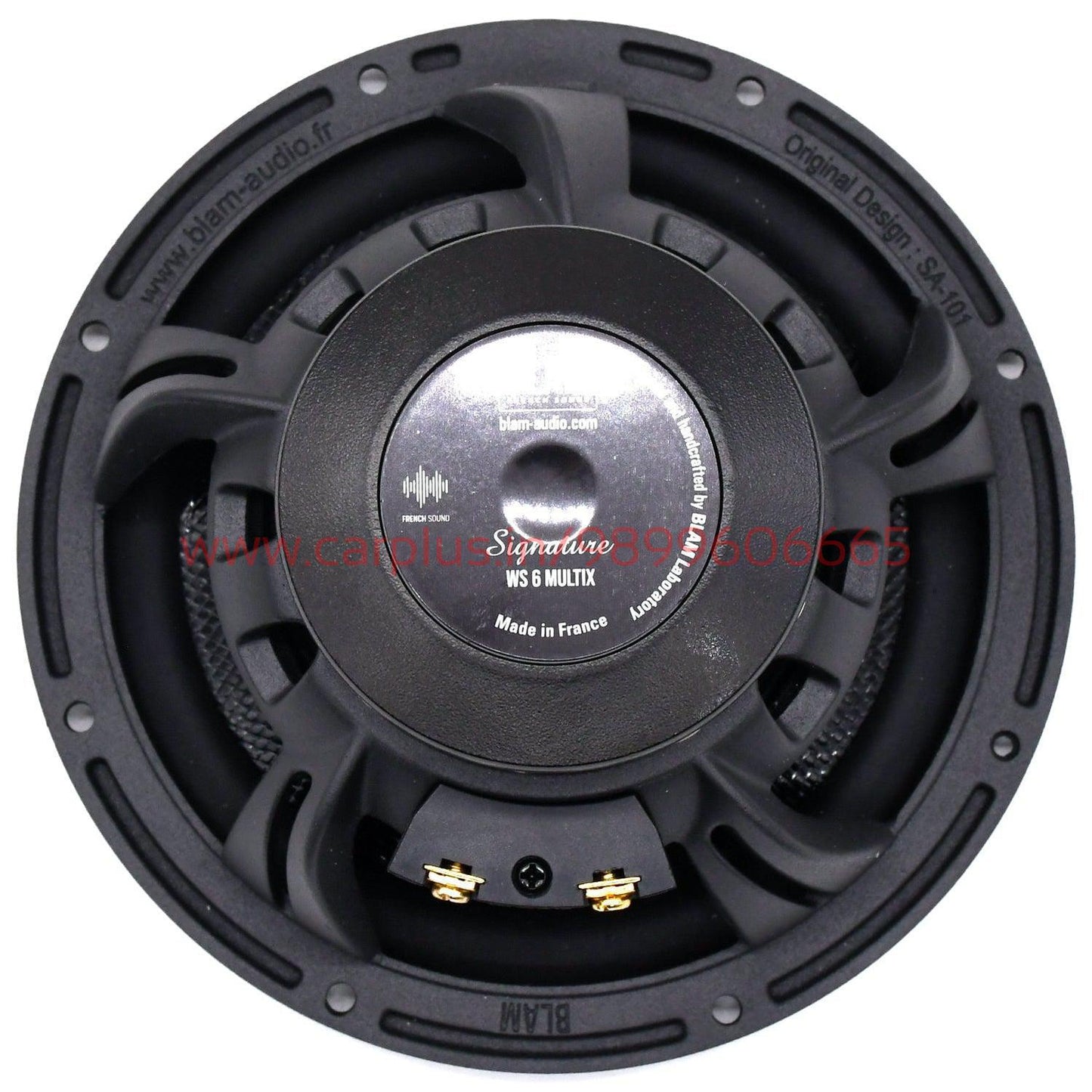

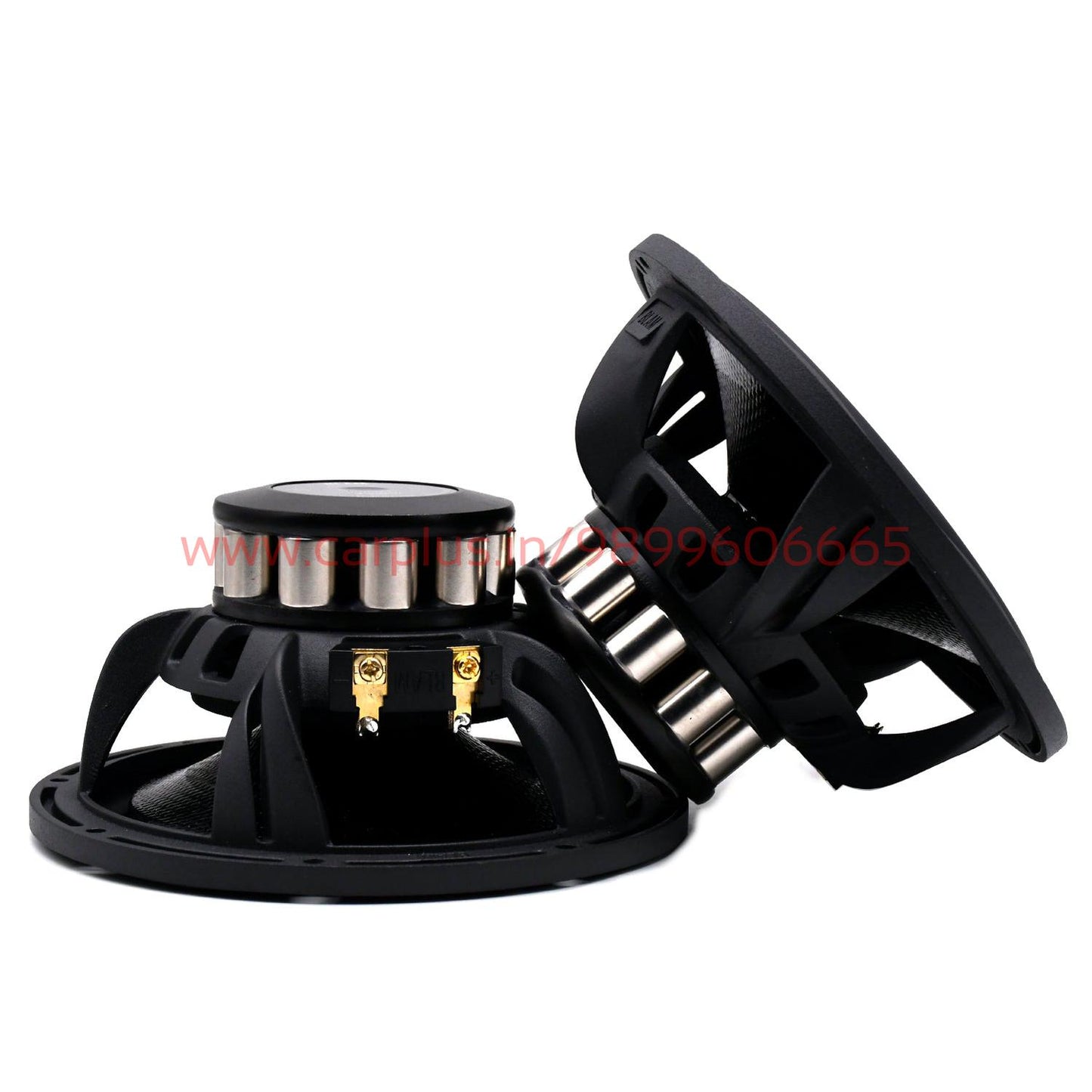

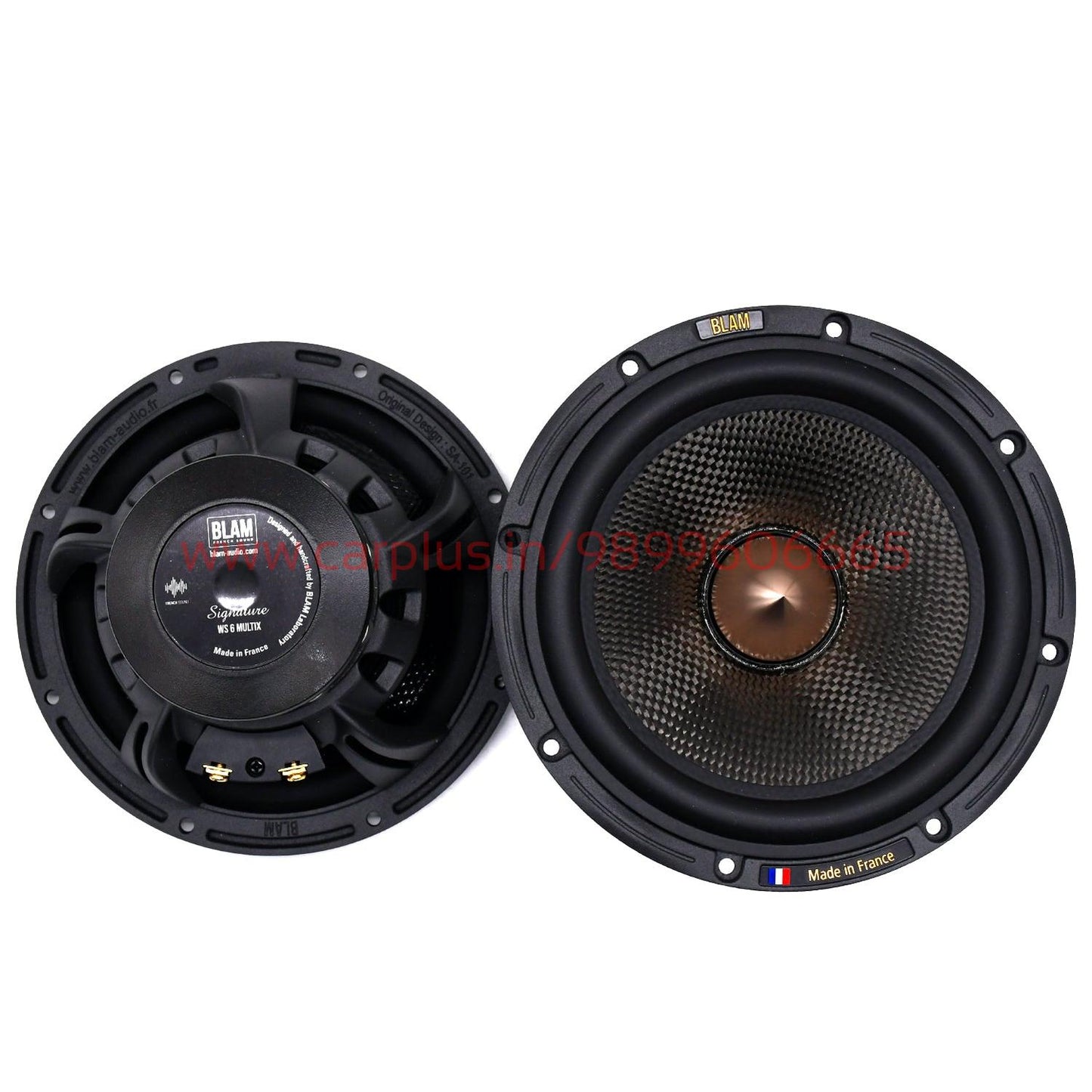

Woofer WS6 – HIGH-POWER WOOFER
6-1/2” (165 mm) woofer
Maximum power: 250 W / Rated power: 125 W
Frequency response: 80 Hz – 6 KHz
Sensitivity: 94 dB – Impedance: 2 Ω
Die-cast aluminum basket – Ultra rigid 3K carbon fiber membrane – NBR surround – Double spider with integrated braids – 38 mm voice coil on fiberglass former – Oversized 10 sticks neodymium magnet – Machined aluminum phase plug – Gold plated terminal – Paired products at +/- 1dB

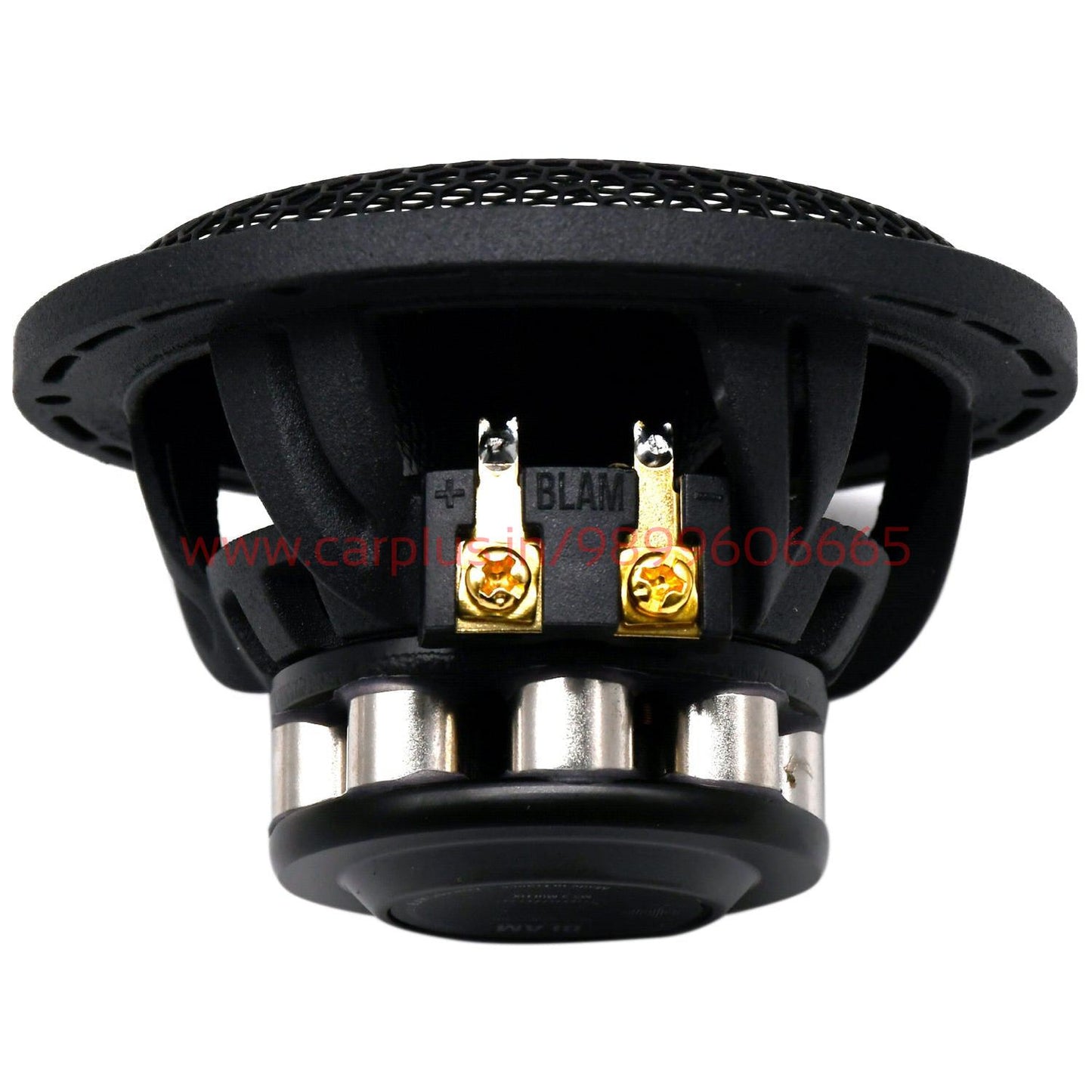

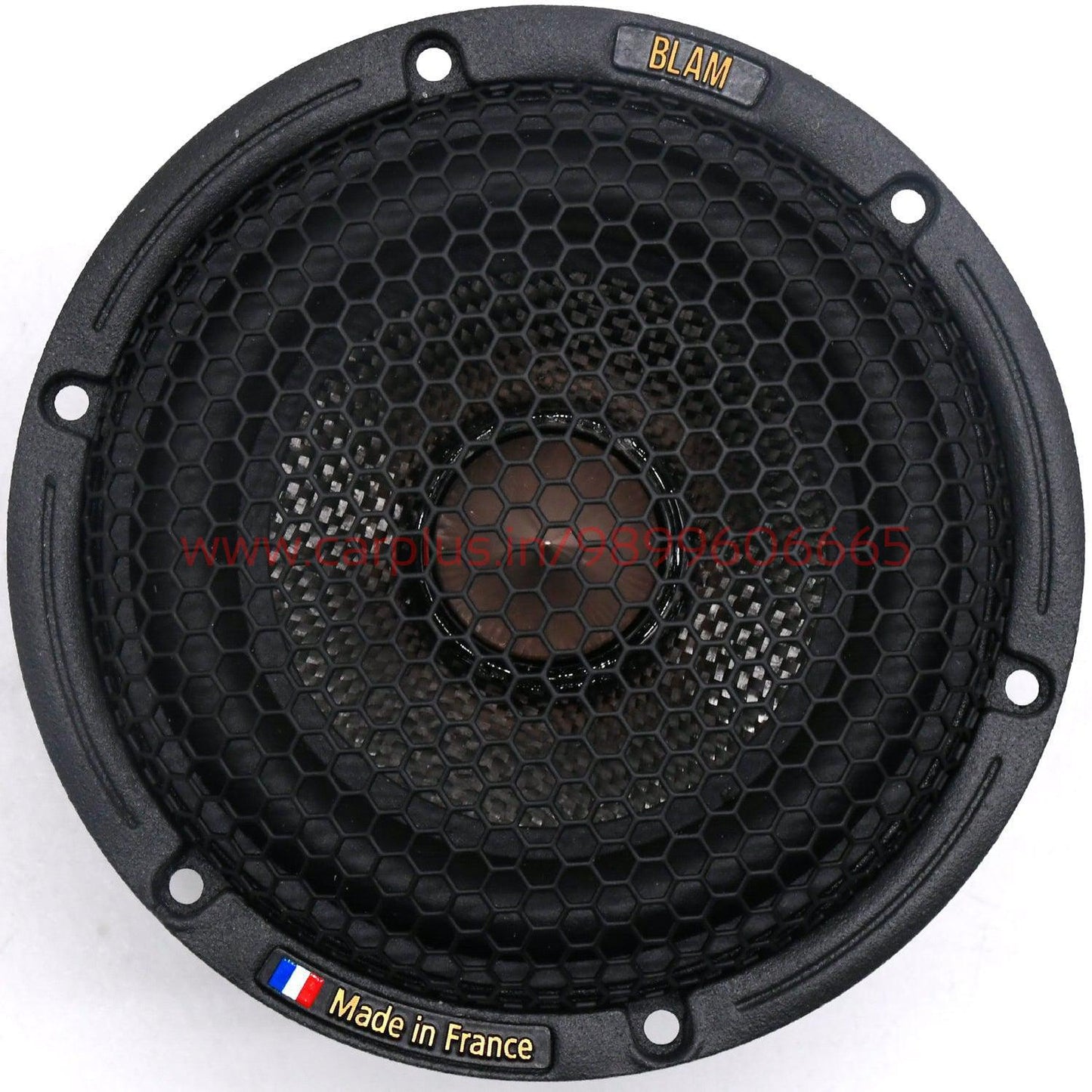

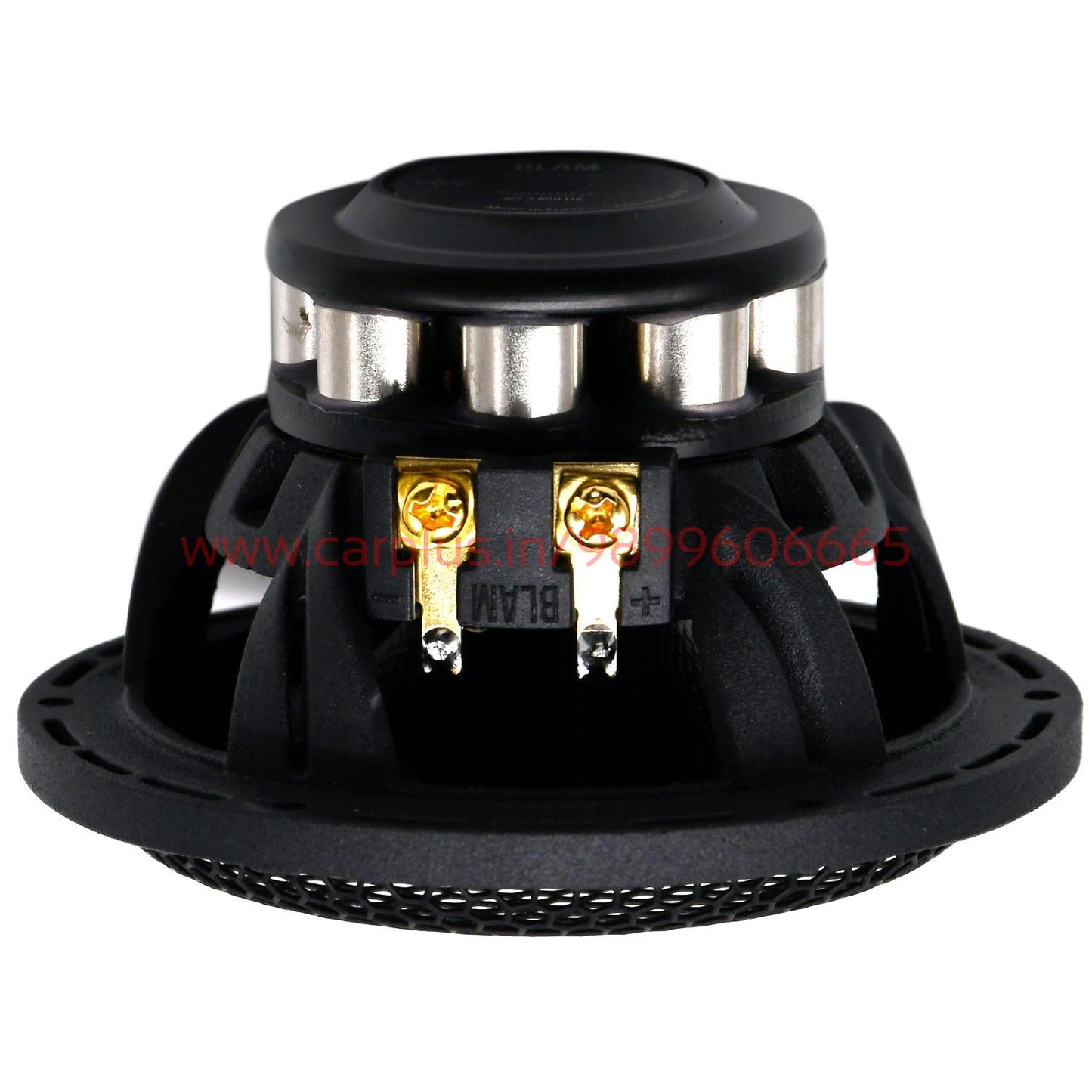

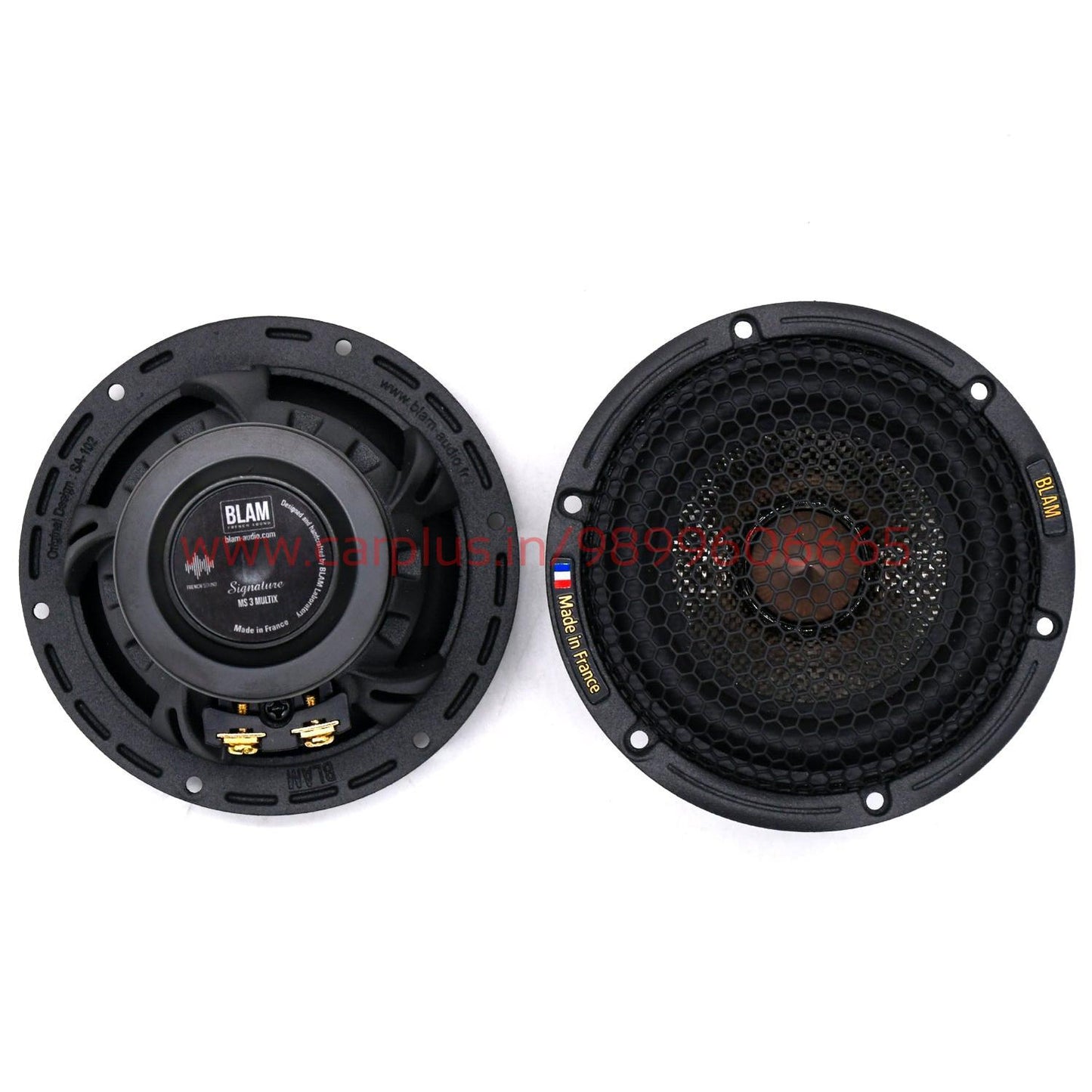

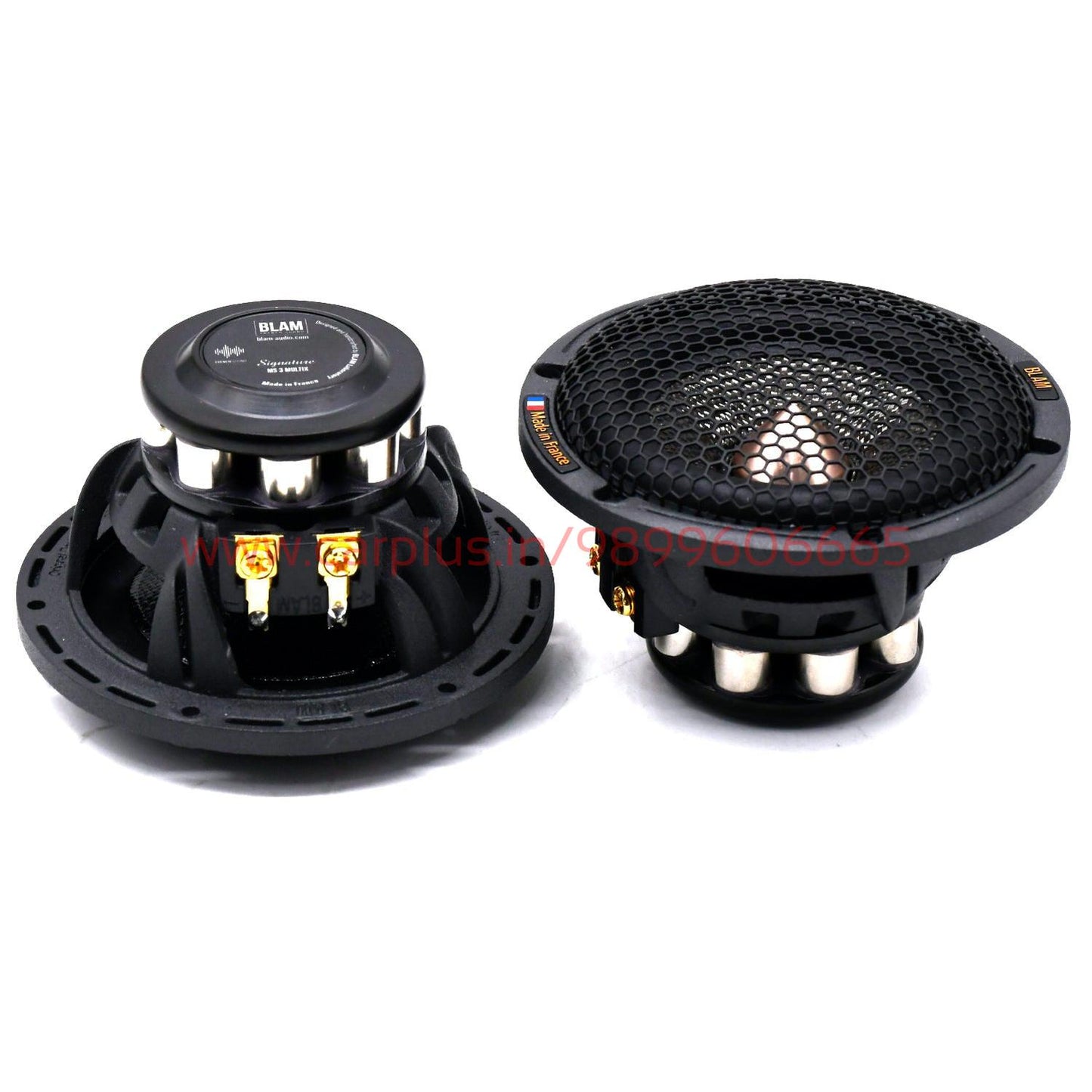

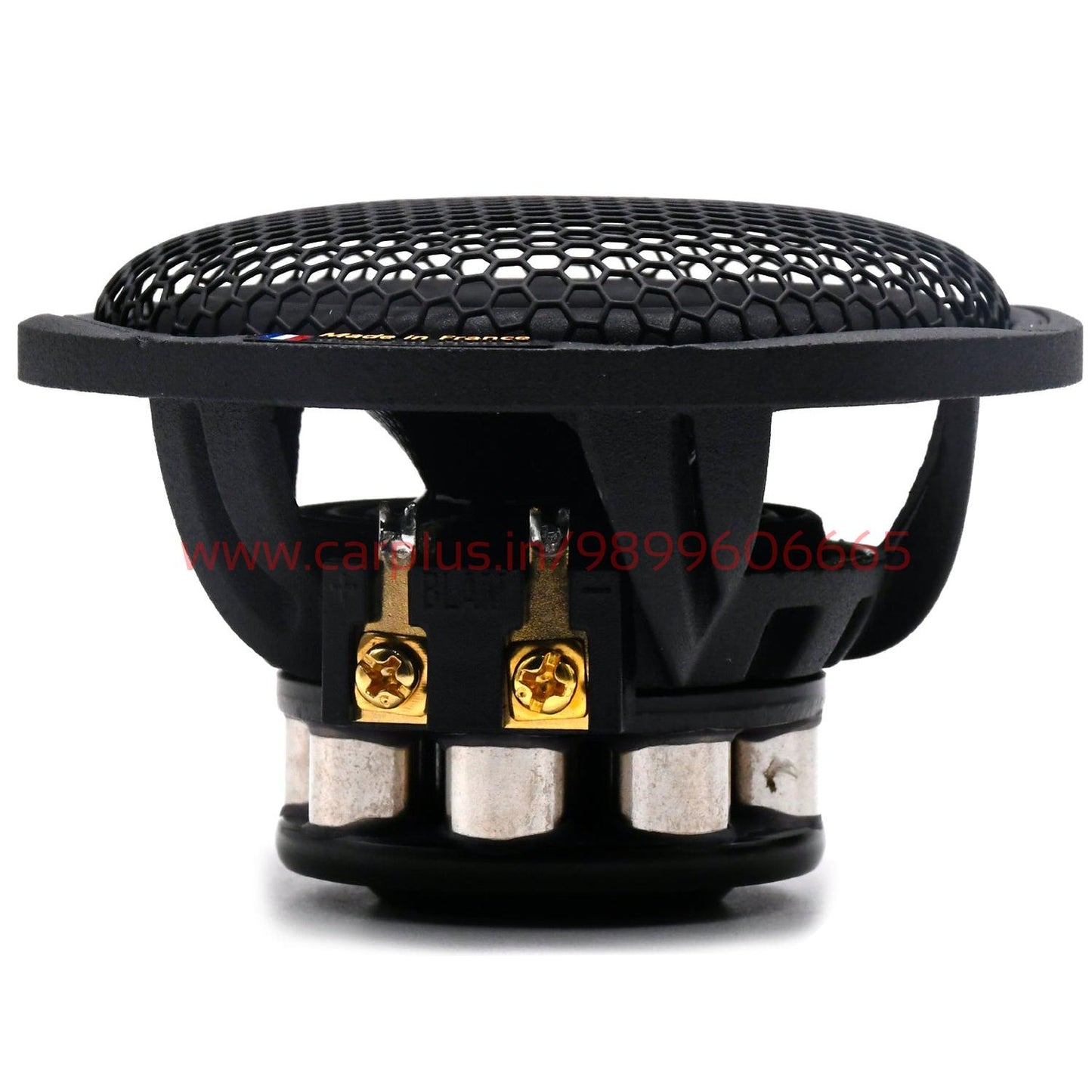

Médium MS3 – EXTENDED-FREQUENCY LOUDSPEAKER
Full-range midrange 3” (80 mm)
Maximum power: 100 W / Nominal power: 25 W
Frequency response 120 Hz – 32 KHz
Impedance 3 Ω
Die-cast aluminium basket – Ultra rigid carbon fiber membrane – NBR surround – Long life “Conex” spider – 38 mm voice coil on fibreglass former – Ultra powerful 8 stick neodymium magnet – Machined aluminium phase plug – Gold plated terminal – Paired products at +/- 1dB

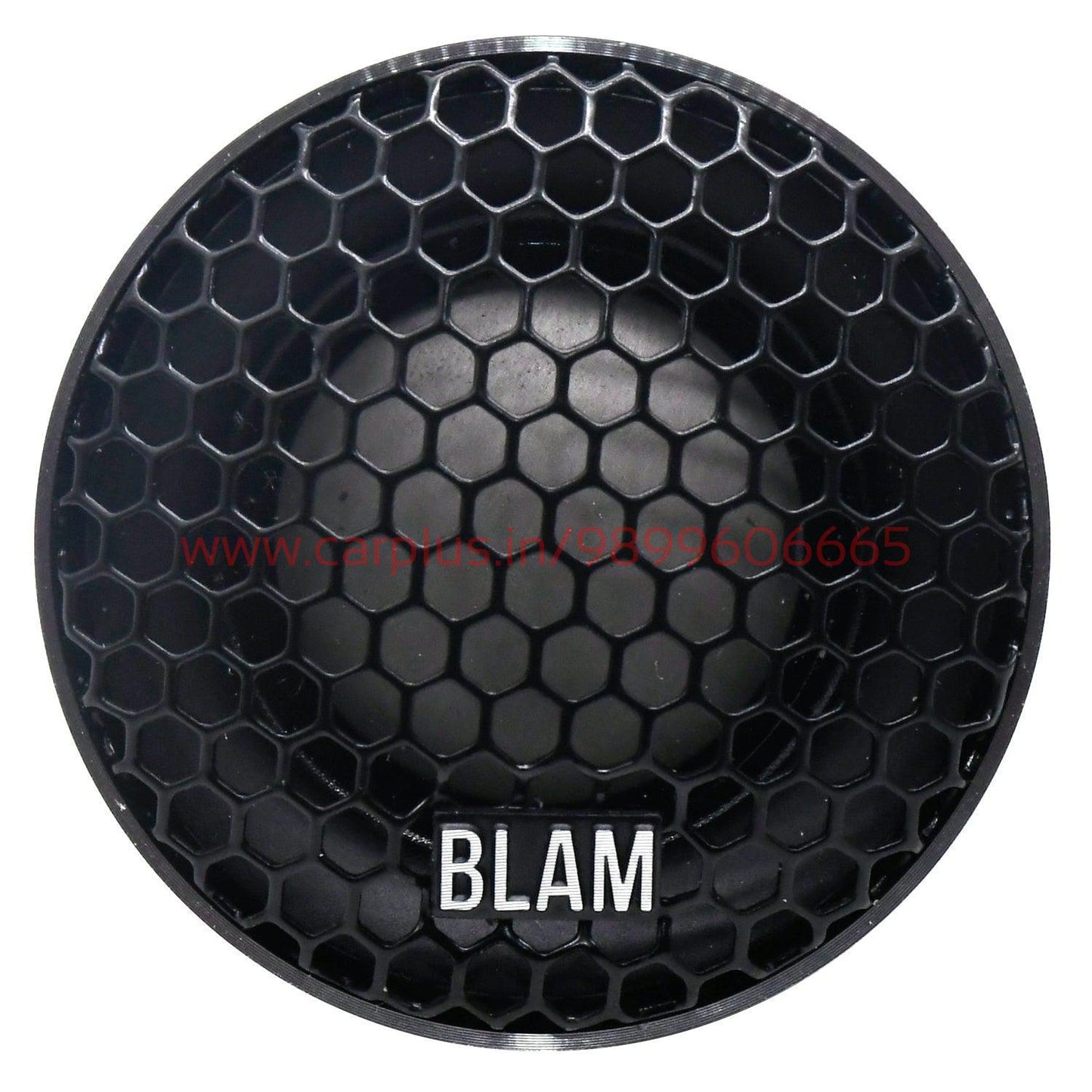

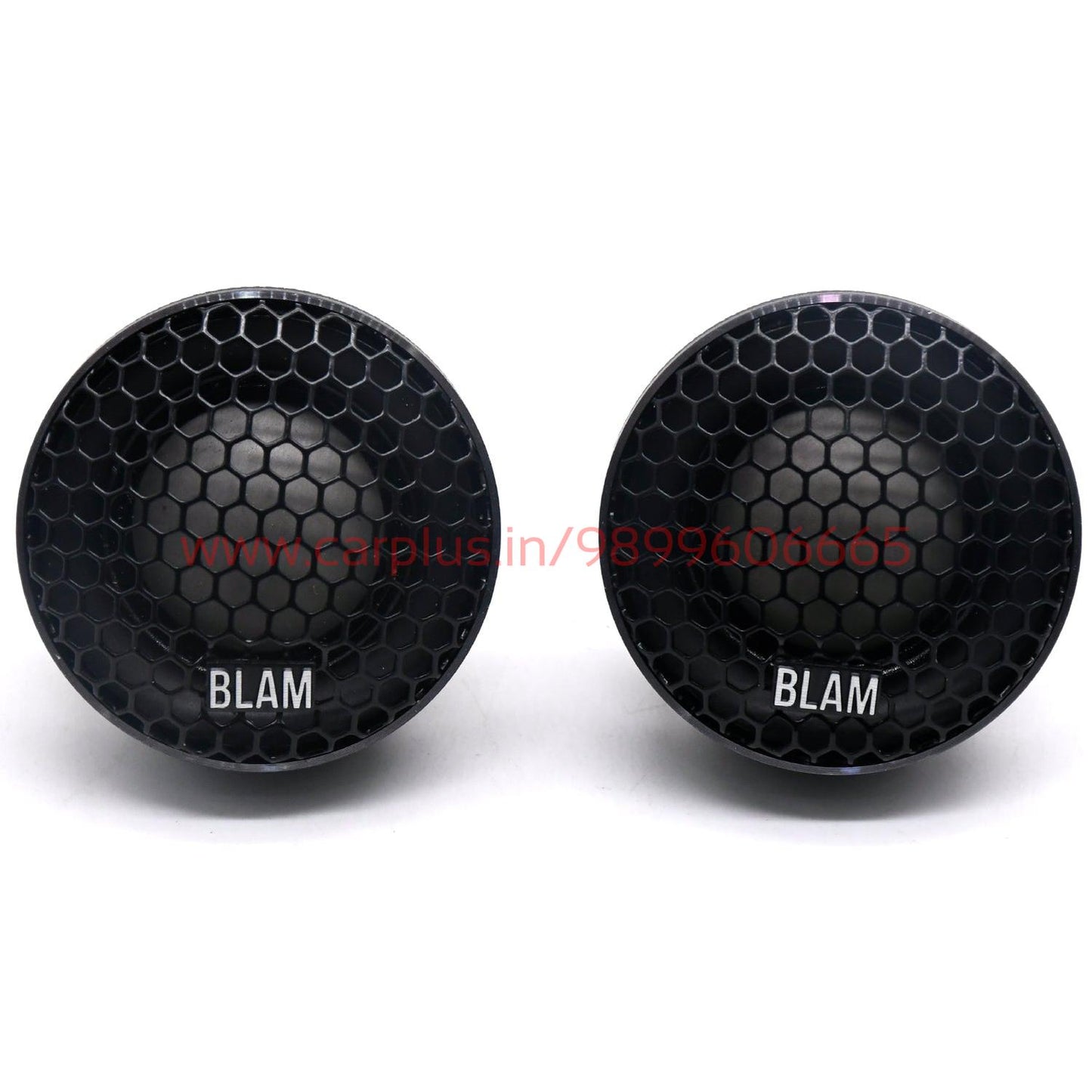

Tweeter TSM25Mg 45 HR – HIGH-RESOLUTION TWEETER
25 mm (1″) pure magnesium dome tweeter
Sensitivity: 89 dB – Impedance: 6 Ω
Frequency response 1.2 KHz – 23 KHz
High-efficiency N38 neodymium pellet magnet – High-precision machined aluminum faceplate – Transparent protective grille

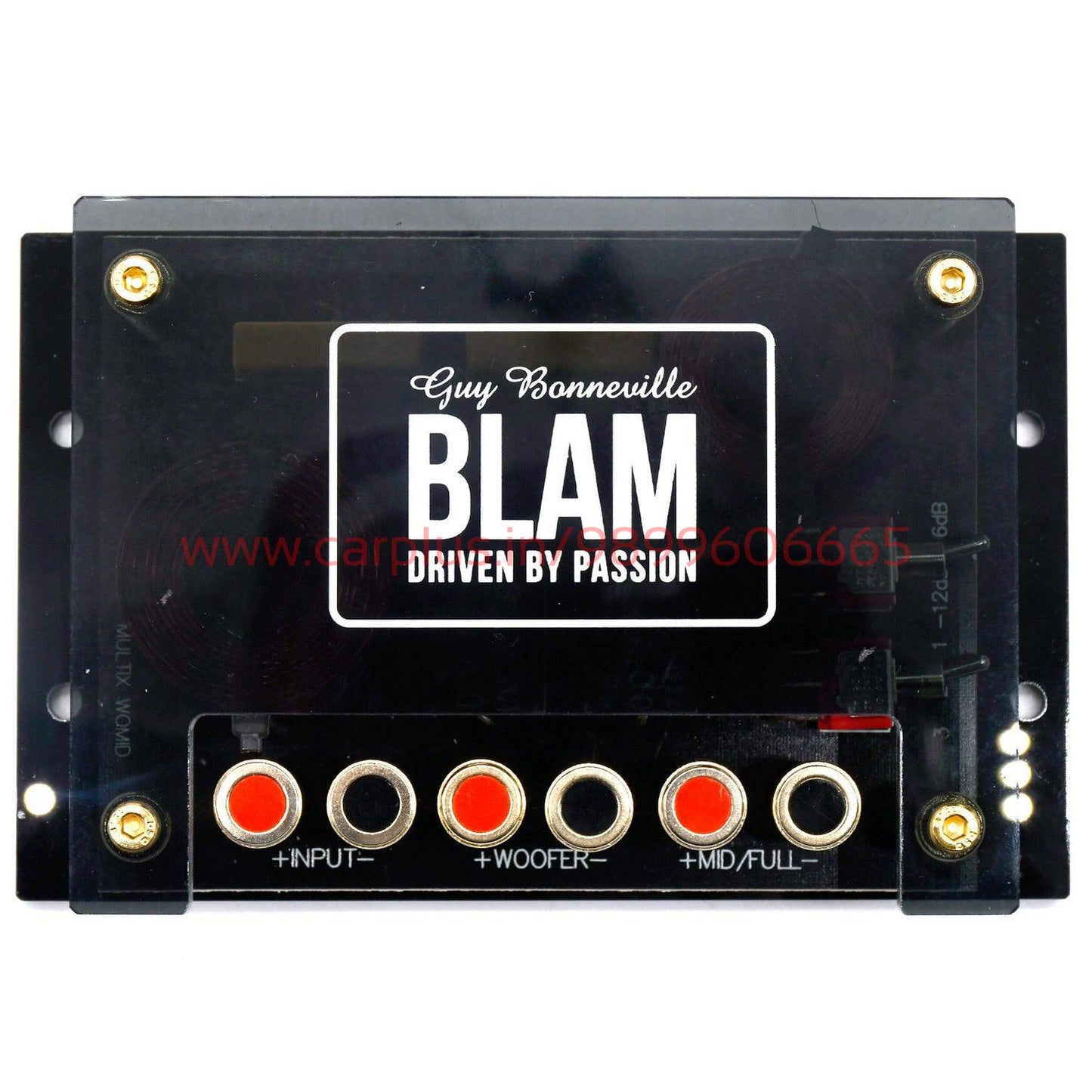

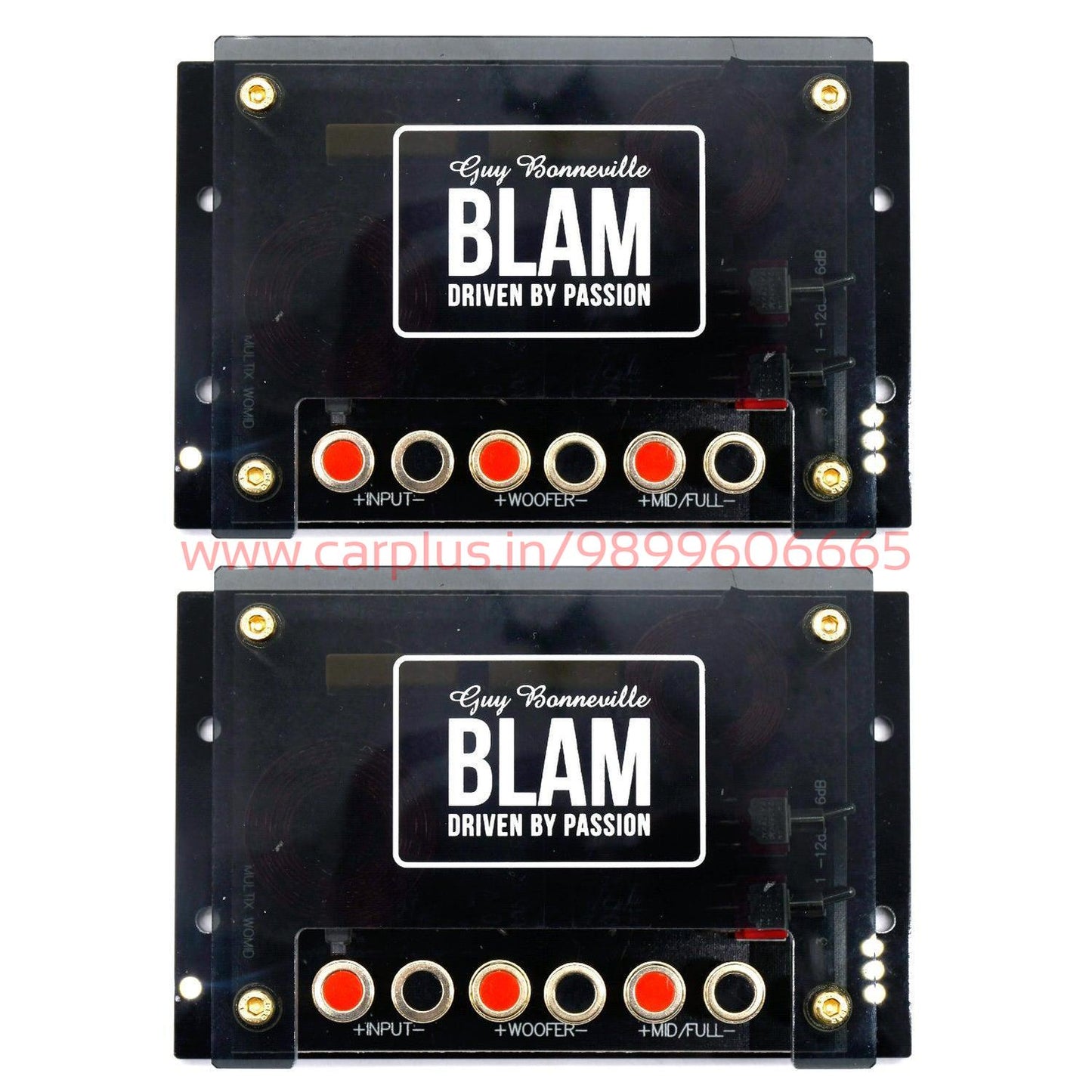

Multix WOMID AUDIOPHILE FILTER
Audiophile component filter
High-pass filter 6/12 dB per octave
Frequency-adjustable high-pass from 150 to 500 Hz

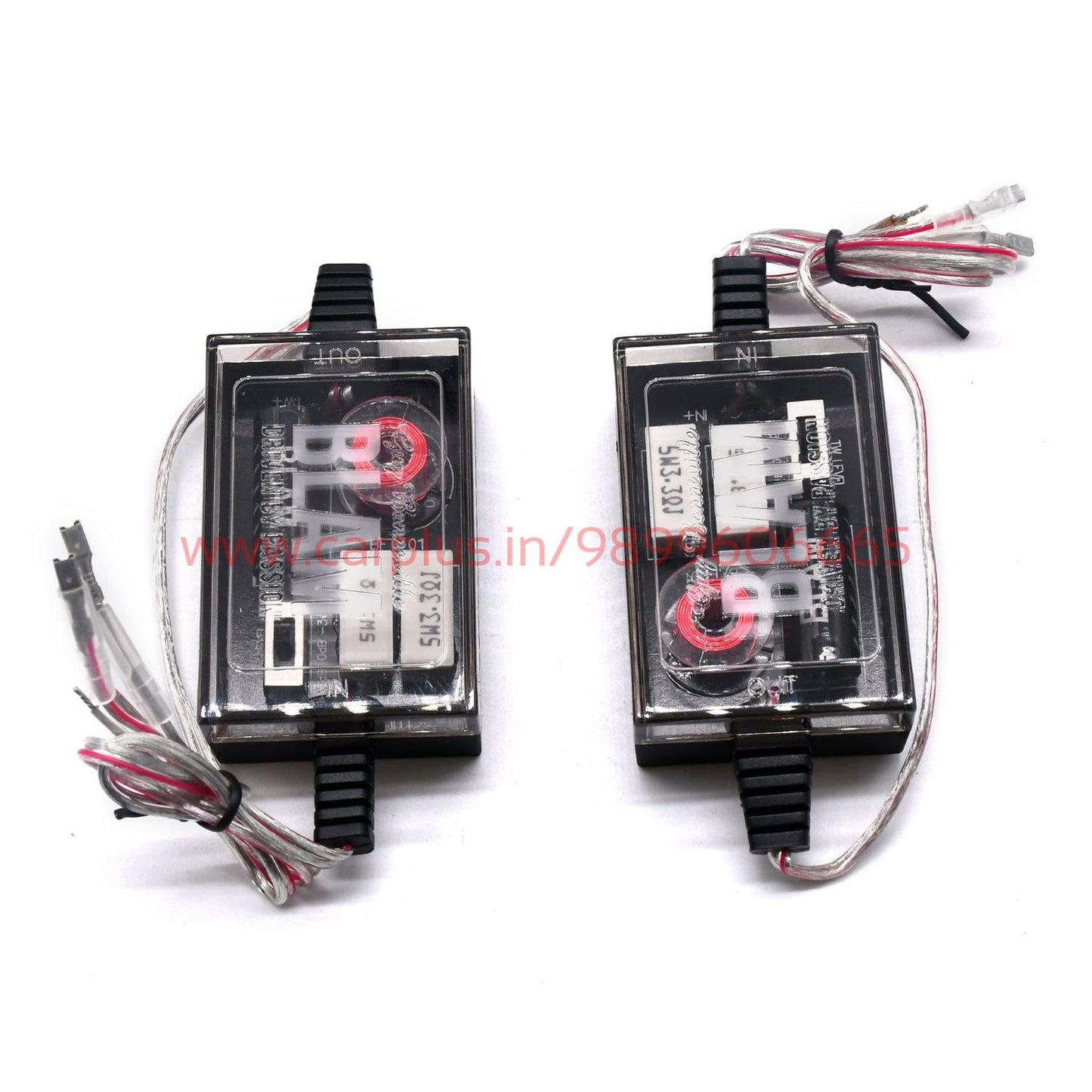

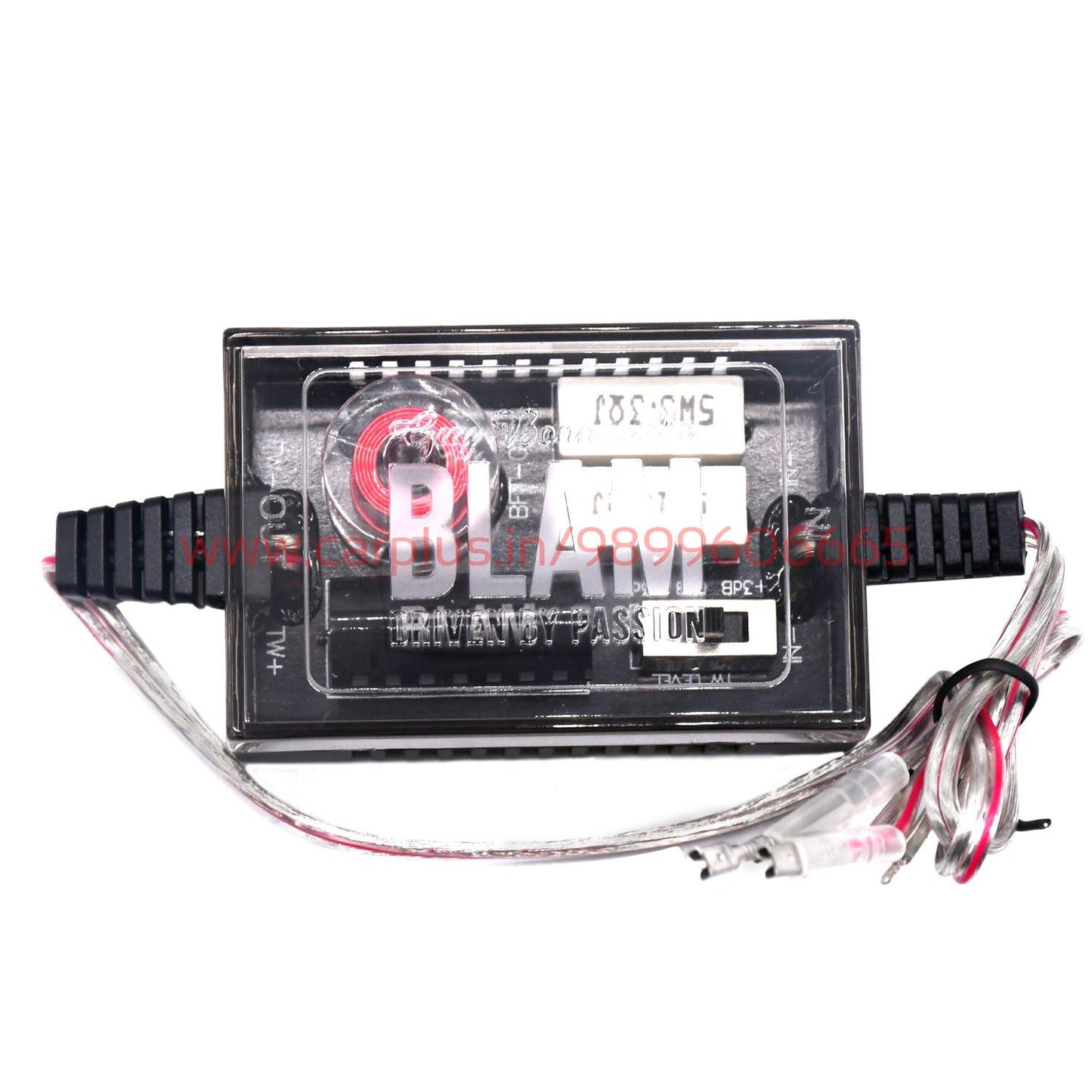

BFT01 HIGH QUALITY FILTER
12 dB/octave high-pass filter
Adjustable tweeter level +3 dB, 0 dB or -3 dB
S165 M3 DATA SHEET
