Description

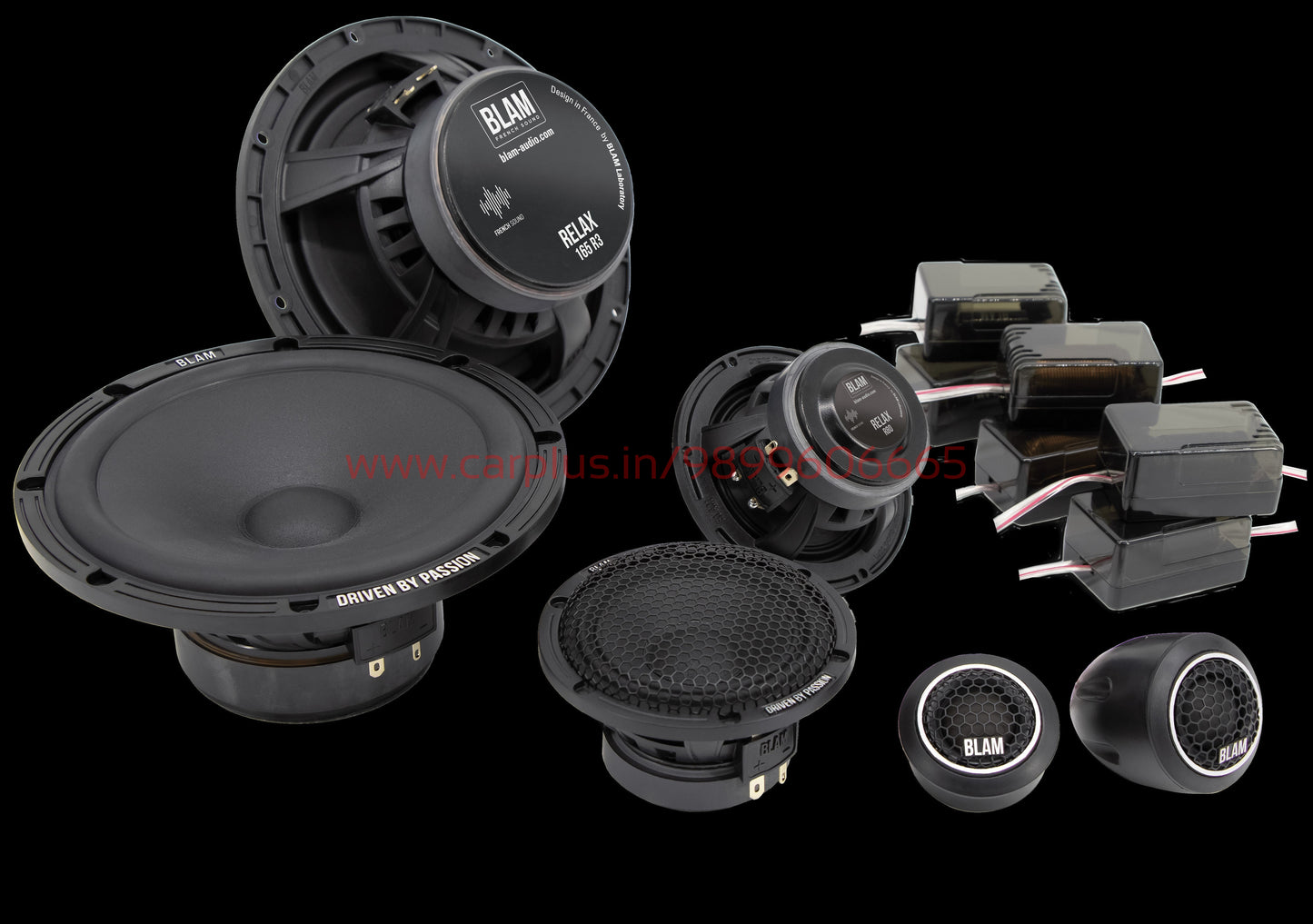

165 mm (6.5”) high-sensitivity 3-way component speaker
Max power 150 W – Nominal power 75 W
Frequency response 60 Hz – 25 kHz
Sensitivity 95 dB – Impedance 2 Ω
Composition

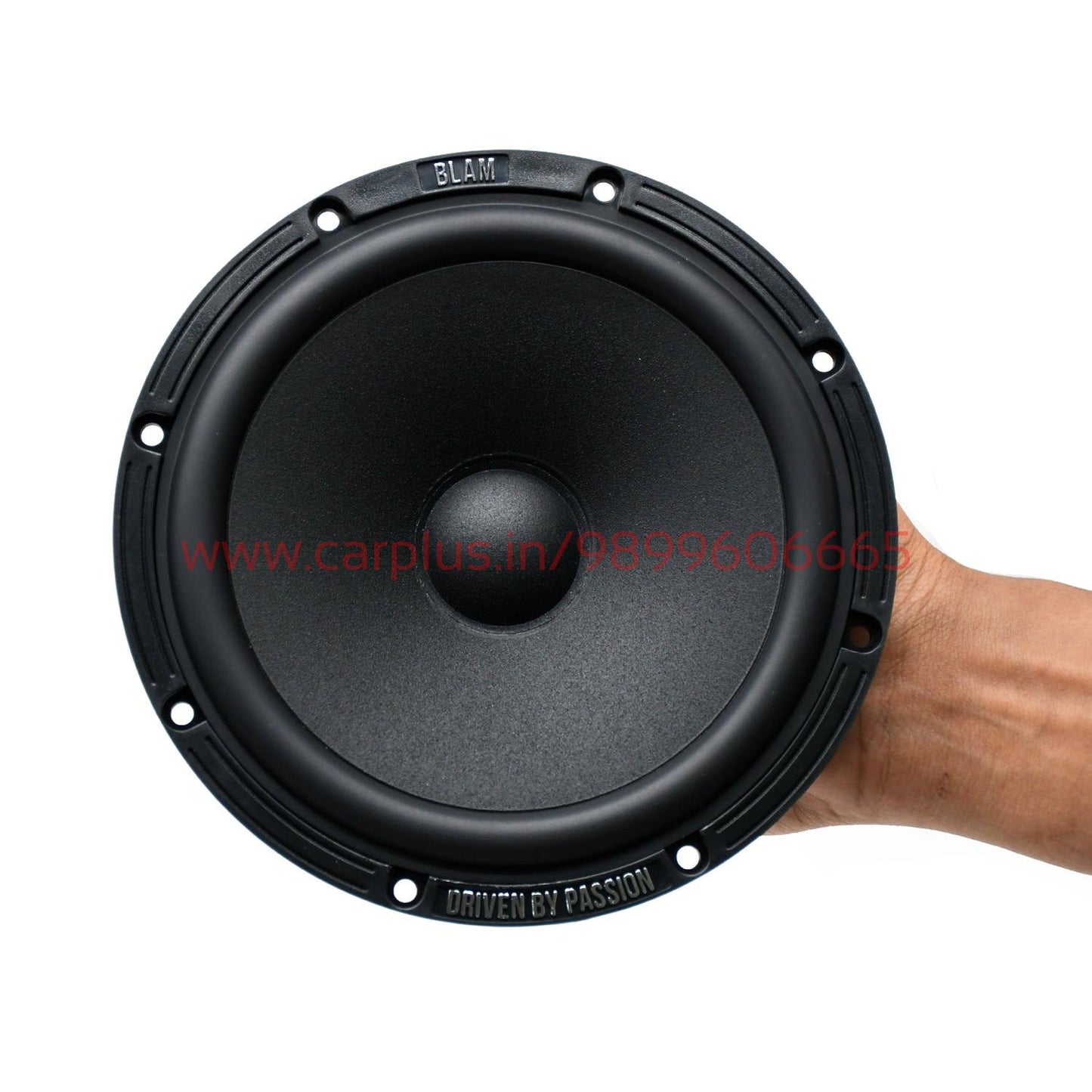

2 Woofers :
Composite basket reinforced in glass fiber
High quality treated cellulose pulp membrane
Butyl rubber surround
Long life ”Conex” damper
25 mm (1”) voice coil with kapton former
85 mm x 17 mm (3.3” x 0.7”) motor assembly
Thick magnetic circuit (5 mm)
2 Mediums :
Composite basket reinforced in glass fiber
High quality treated cellulose pulp membrane
Butyl rubber surround
Long life ”Conex” damper
20 mm (0.8”) voice coil with fiberglass former
55 mm x 10 mm (2.1” x 0.4”) ferrite magnet
2 Tweeters :
20 mm (3/4”) high quality soft dome tweeter
N38 Neodymium motor
6 Crossovers :
Two 6 dB/octave low pass crossovers for woofer BFR3-W
Two 6 dB/octave high pass crossovers for medium BFR3-M
Two 6 dB/octave high pass crossovers for tweeter BFR3-T
Adjustable tweeter level: 0 dB or attenuated -3 dB
